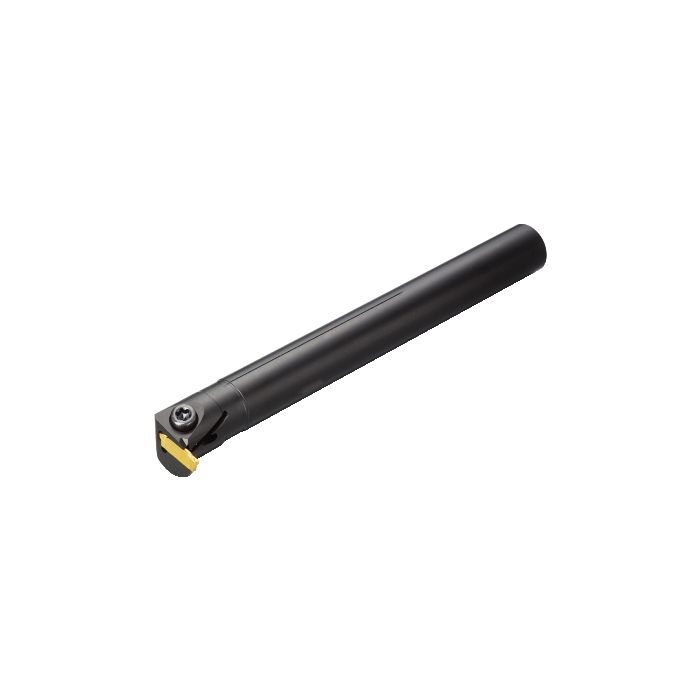

Sandvik Coromant LAG123E05-20B CoroCut™ 1-2 boring bar for grooving

R 3 977,85 inc. vat
In stock
SKU
5734790
CoroCut® 1-2 boring bar for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 boring bar for grooving
More Information
CP - Coolant Pressure 4000000Pa
DCON - Connection Diameter 20mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 180mm
BD - Body Diameter 20mm
TQ - Torque 3.5Nm
WT - Weight Of Item 0.423kg
OAL - Overall Length 180mm
OHX - Maximum Overhang 80mm
LSC - Clamping Length 100mm
KAPR - Tool Cutting Edge Angle 90deg
DMIN - Minimum Bore Diameter 32mm
BAWS - Workpiece Side Body Angle 90deg
OHN - Minimum Overhang 30mm
WF - Functional Width 15.25mm
HF - Functional Height 0mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
Insert Thickness 4.3321mm
CW - Cutting Width 2mm
CDX - Cutting Depth Maximum 5mm
ORDCODE LAG123E05-20B
ADINTMS - Adaptive Interface Machine Direction M_CYLR_G2000_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-08-18 15:33:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_CCE2_4
Hand L
MIID - Master Insert Identification N123E2-0200- GM
SSC - Insert Seat Size Code E
CICT - Cutting Item Count 1
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
LOCAP - Location Aid Property True
