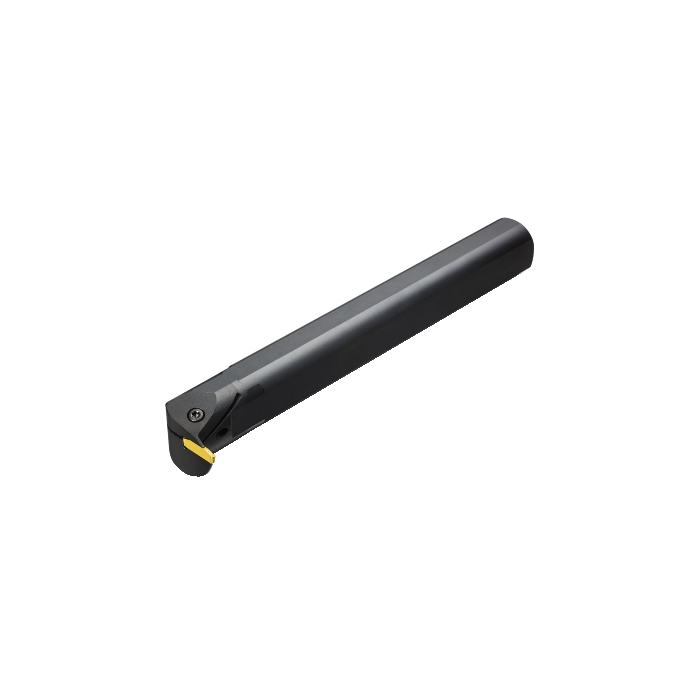

Sandvik Coromant LAG123H13-50B CoroCut™ 1-2 boring bar for grooving
R 8 097,15
inc. vat
In stock
SKU
5734696
CoroCut® 1-2 boring bar for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 boring bar for grooving
| CP - Coolant Pressure | 4000000Pa |
|---|---|
| DCON - Connection Diameter | 50mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 350mm |
| BD - Body Diameter | 50mm |
| TQ - Torque | 5Nm |
| WT - Weight Of Item | 4.96kg |
| OAL - Overall Length | 350mm |
| OHX - Maximum Overhang | 200mm |
| LSC - Clamping Length | 150mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| DMIN - Minimum Bore Diameter | 60mm |
| BAWS - Workpiece Side Body Angle | 90deg |
| OHN - Minimum Overhang | 65mm |
| WF - Functional Width | 38.25mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| Insert Thickness | 4.35mm |
| H - Shank Height | 47mm |
| CW - Cutting Width | 4mm |
| CDX - Cutting Depth Maximum | 13mm |
| ORDCODE | LAG123H13-50B |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLF3_G5000_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 3 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-05-16 17:01:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCH2_4 |
| Hand | L |
| MIID - Master Insert Identification | N123H2-0400- GM |
| SSC - Insert Seat Size Code | H |
| CICT - Cutting Item Count | 1 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
