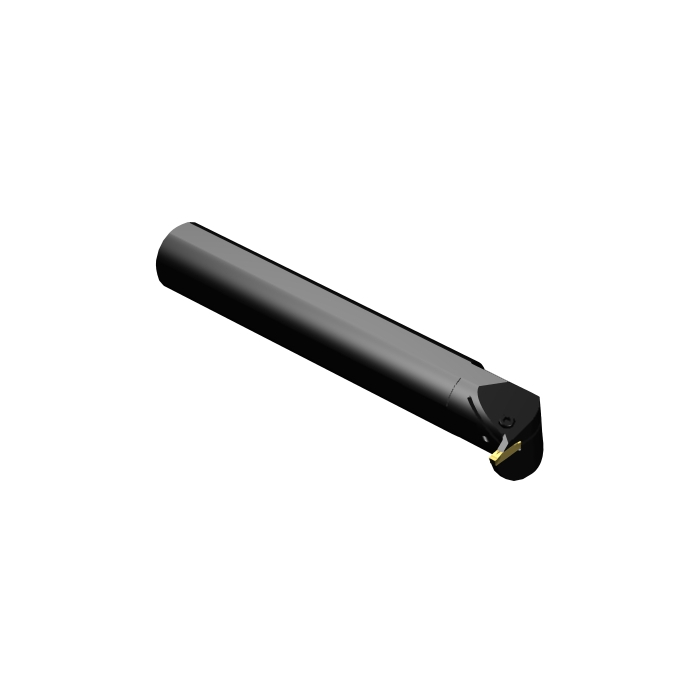

Sandvik Coromant LAG123K053-32B CoroCut™ 1-2 boring bar for grooving

Name: Sandvik Coromant LAG123K053-32B CoroCut™ 1-2 boring bar for grooving
SKU: 5733704
Price: 8097.15 ZAR
Availability: OutOfStock

R 8 097,15 inc. vat

Out of stock

SKU

5733704

CoroCut® 1-2 boring bar for grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® 1-2 boring bar for grooving

More Information
CP - Coolant Pressure	4000000Pa
DCON - Connection Diameter	50.8mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	350mm
BD - Body Diameter	50.8mm
TQ - Torque	5.5Nm
WT - Weight Of Item	4.945kg
OAL - Overall Length	350mm
OHX - Maximum Overhang	203.2mm
LSC - Clamping Length	146.8mm
KAPR - Tool Cutting Edge Angle	90deg
DMIN - Minimum Bore Diameter	60mm
BAWS - Workpiece Side Body Angle	90deg
OHN - Minimum Overhang	65mm
WF - Functional Width	38.7mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	4.35mm
H - Shank Height	46.99mm
CW - Cutting Width	6mm
CDX - Cutting Depth Maximum	13mm
ORDCODE	LAG123K053-32B
ADINTMS - Adaptive Interface Machine Direction	M_CYLF3_S2000_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-06-14 15:59:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CCK2_4
Hand	L
MIID - Master Insert Identification	N123K2-0600-GM
SSC - Insert Seat Size Code	K
CICT - Cutting Item Count	1
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
