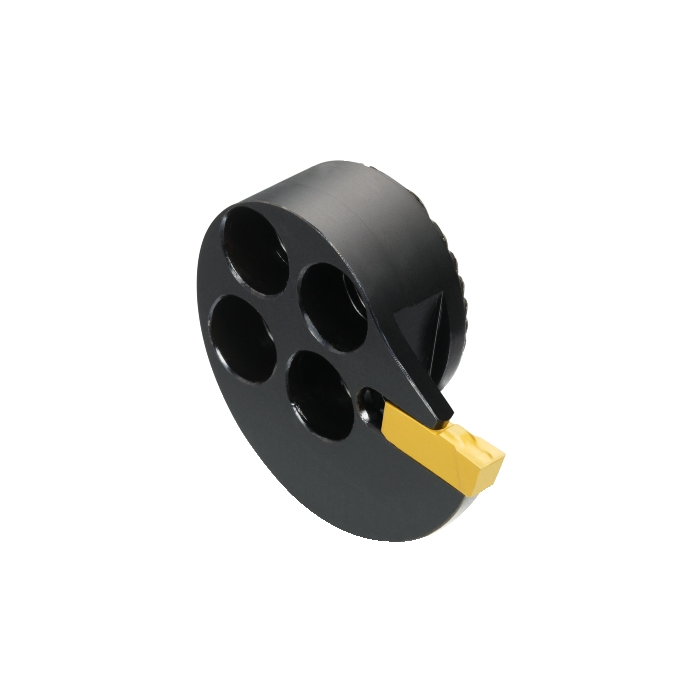

Sandvik Coromant LAG551.31-402019-50 T-Max™ Q-Cut head for grooving
R 7 150,70
inc. vat
Out of stock
SKU
5733751
T-Max® Q-Cut head for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® Q-Cut head for grooving
| CP - Coolant Pressure | 1000000Pa |
|---|---|
| DCON - Connection Diameter | 40mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 19.5mm |
| WT - Weight Of Item | 0.22kg |
| OAL - Overall Length | 23.3mm |
| OHX - Maximum Overhang | 19.5mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| DMIN - Minimum Bore Diameter | 60mm |
| BAWS - Workpiece Side Body Angle | 90deg |
| WF - Functional Width | 39.5mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| Insert Thickness | 6.106mm |
| CW - Cutting Width | 5mm |
| CDX - Cutting Depth Maximum | 19.5mm |
| ORDCODE | LAG551.31-402019-50 |
| ADINTMS - Adaptive Interface Machine Direction | M_SLHDS_C0400_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 2 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-09-01 01:06:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CB3G50_1 |
| Hand | L |
| MIID - Master Insert Identification | N151.3-500-50- 4G |
| SSC - Insert Seat Size Code | 50 |
| CICT - Cutting Item Count | 1 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
