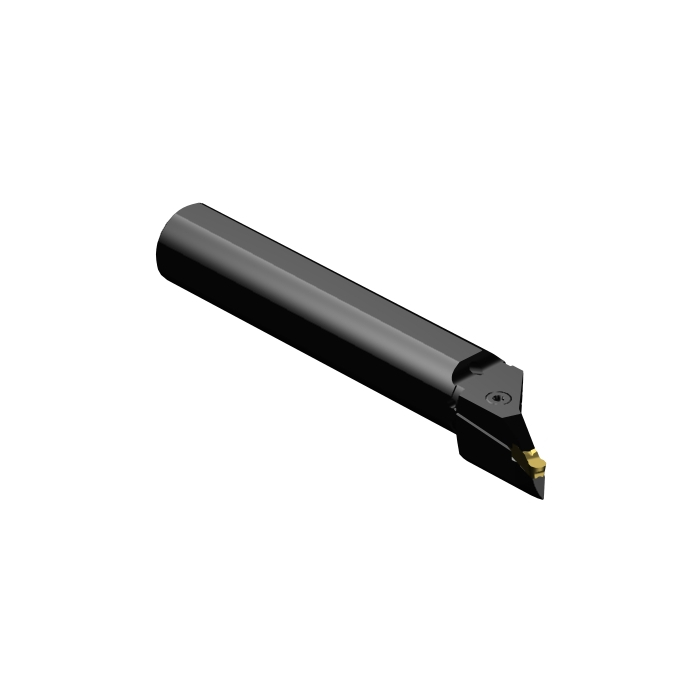

Sandvik Coromant LAX123L25-40B-020 CoroCut™ 1-2 boring bar for profiling

Name: Sandvik Coromant LAX123L25-40B-020 CoroCut™ 1-2 boring bar for profiling
SKU: 5733728
Price: 7186.35 ZAR
Availability: InStock

R 7 186,35 inc. vat

In stock

SKU

5733728

CoroCut® 1-2 boring bar for profiling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® 1-2 boring bar for profiling

More Information
CP - Coolant Pressure	4000000Pa
DCON - Connection Diameter	40mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	254mm
TQ - Torque	3Nm
WT - Weight Of Item	1.956kg
OAL - Overall Length	254mm
OHX - Maximum Overhang	160mm
LSC - Clamping Length	188.4mm
RMPX - Maximum Ramping Angle	20deg
DMIN - Minimum Bore Diameter	63.5mm
BAWS - Workpiece Side Body Angle	20deg
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	65.6mm
WF - Functional Width	26mm
HF - Functional Height	18.5mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	6.05mm
H - Shank Height	37mm
LPR - Protruding Length	254mm
CW - Cutting Width	8mm
CDX - Cutting Depth Maximum	25mm
ORDCODE	LAX123L25-40B-020
ADINTMS - Adaptive Interface Machine Direction	M_CYLF3_G4000_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-06-14 15:59:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CCL2_1
Hand	L
MIID - Master Insert Identification	N123L2-0800- AM
SSC - Insert Seat Size Code	L
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
