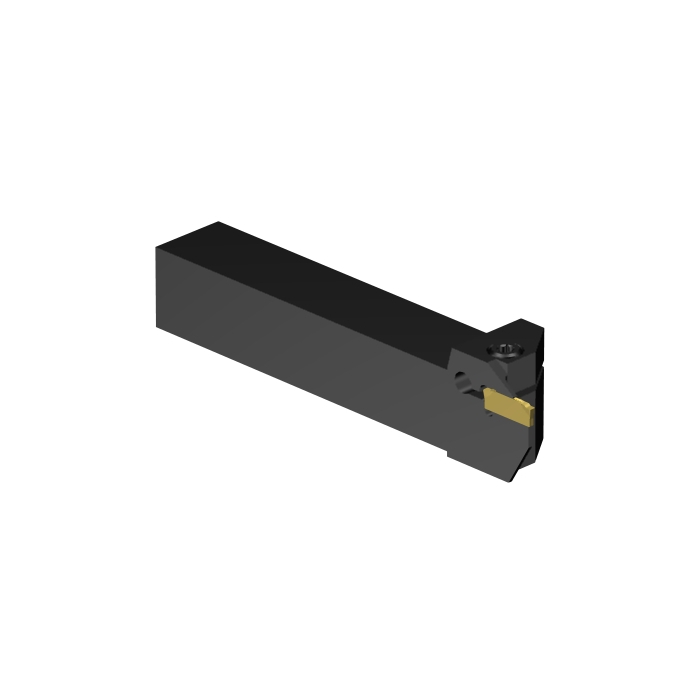

Sandvik Coromant LF123D032-12B CoroCut™ 1-2 shank tool for parting and grooving

Name: Sandvik Coromant LF123D032-12B CoroCut™ 1-2 shank tool for parting and grooving
SKU: 5733660
Price: 2512.75 ZAR
Availability: InStock

Be the first to review this product

R 2 512,75 inc. vat

In stock

SKU

5733660

CoroCut® 1-2 shank tool for parting and grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® 1-2 shank tool for parting and grooving

More Information

More Information
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	114.3mm
TQ - Torque	2.5Nm
WT - Weight Of Item	0.305kg
OAL - Overall Length	114.3mm
OHX - Maximum Overhang	25.4mm
KAPR - Tool Cutting Edge Angle	90deg
BAWS - Workpiece Side Body Angle	0deg
WF - Functional Width	20.955mm
HF - Functional Height	19.05mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	4.1mm
H - Shank Height	19.05mm
CW - Cutting Width	1.5mm
B - Shank Width	19.05mm
CDX - Cutting Depth Maximum	8.128mm
ORDCODE	LF123D032-12B
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_B1212_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 15:22:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CCD2_2
Hand	L
MIID - Master Insert Identification	N123D2-0150-0002-CM
SSC - Insert Seat Size Code	D
CICT - Cutting Item Count	1
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
