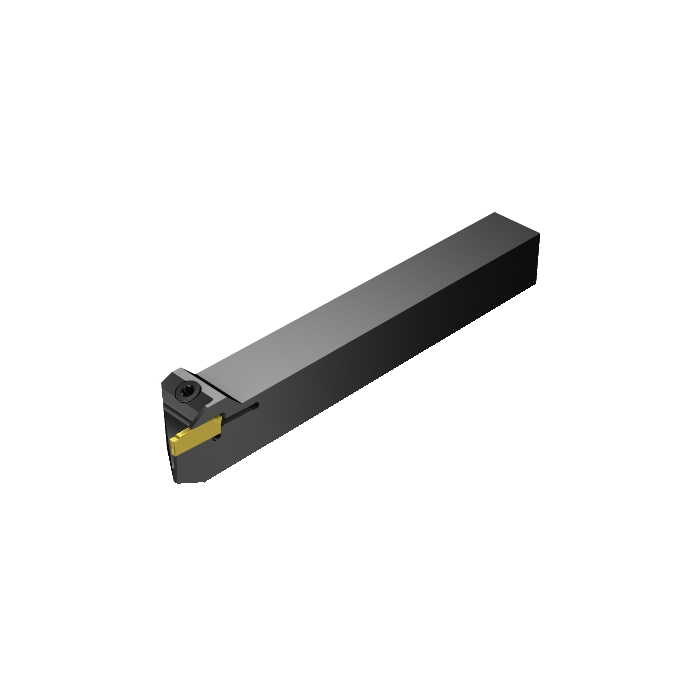

Sandvik Coromant LF123E11-1616B-S CoroCut™ 1-2 shank tool for parting & grooving

R 2 406,95 inc. vat
In stock
SKU
5856743
CoroCut® 1-2 shank tool for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 shank tool for parting and grooving
More Information
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 125mm
TQ - Torque 2.5Nm
WT - Weight Of Item 0.252kg
OAL - Overall Length 125mm
OHX - Maximum Overhang 22.6mm
KAPR - Tool Cutting Edge Angle 90deg
BAWS - Workpiece Side Body Angle 0deg
WF - Functional Width 16mm
HF - Functional Height 16mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
Insert Thickness 4.3321mm
H - Shank Height 16mm
CW - Cutting Width 2mm
B - Shank Width 16mm
CDX - Cutting Depth Maximum 11mm
CUTDIA - Work Piece Parting Diameter Maximum 22mm
ORDCODE LF123E11-1616B-S
ADINTMS - Adaptive Interface Machine Direction M_VKT01_A1616_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-06-13 15:35:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_CCE2_2
Hand L
MIID - Master Insert Identification N123E2-0200-0002-CM
SSC - Insert Seat Size Code E
CICT - Cutting Item Count 1
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
