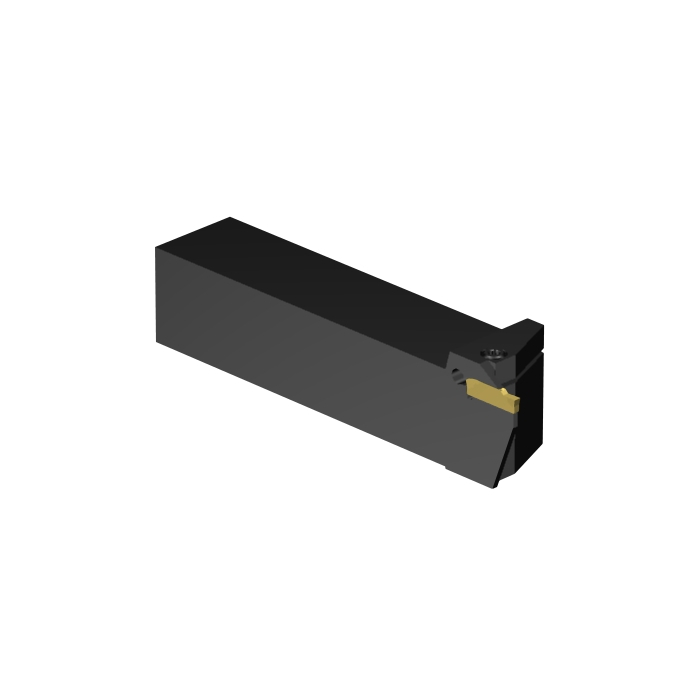

Sandvik Coromant LF123F040-20B CoroCut™ 1-2 shank tool for parting and grooving

R 3 611,00 inc. vat
In stock
SKU
5732610
CoroCut® 1-2 shank tool for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 shank tool for parting and grooving
More Information
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 152.4mm
TQ - Torque 3Nm
WT - Weight Of Item 1.111kg
OAL - Overall Length 152.4mm
OHX - Maximum Overhang 29.0068mm
KAPR - Tool Cutting Edge Angle 90deg
BAWS - Workpiece Side Body Angle 0deg
WF - Functional Width 32.9946mm
HF - Functional Height 31.75mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
Insert Thickness 4.3321mm
H - Shank Height 31.75mm
CW - Cutting Width 2.5mm
B - Shank Width 31.75mm
CDX - Cutting Depth Maximum 10.16mm
ORDCODE LF123F040-20B
ADINTMS - Adaptive Interface Machine Direction M_VKT01_B2020_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-08-18 15:19:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_CCF2_2
Hand L
MIID - Master Insert Identification N123F2-0250-0002-CM
SSC - Insert Seat Size Code F
CICT - Cutting Item Count 1
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
