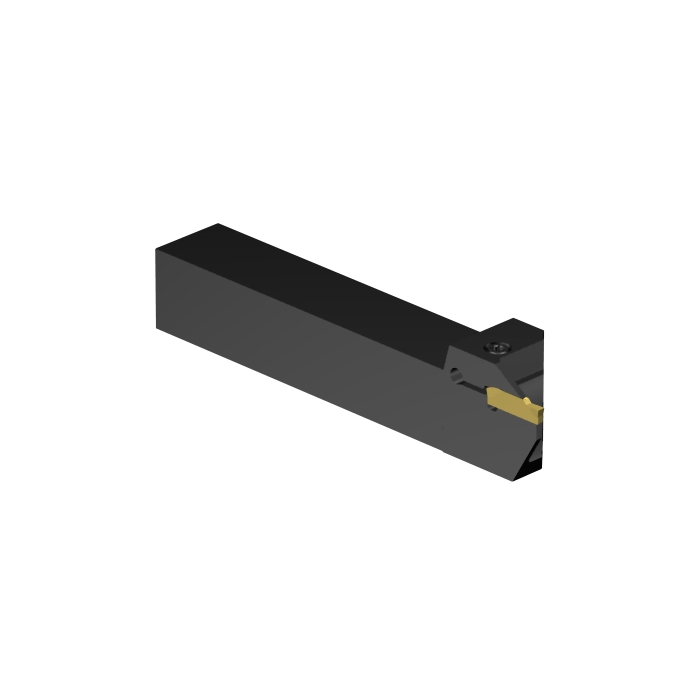

Sandvik Coromant LF123G22-2020D CoroCut™ 1-2 shank tool for parting & grooving
Next
Sandvik Coromant LF123F17-2020D CoroCut™ 1-2 shank tool for parting & grooving
Previous
![Sandvik Coromant LF123G22-2020D CoroCut™ 1-2 shank tool for parting & grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/53597dc3a/sandvik-coromant-lf123g22-2020d-corocuttm-1-2-shank-tool-for-parting-grooving.jpg)
![Sandvik Coromant LF123F17-2020D CoroCut™ 1-2 shank tool for parting & grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/5359583e7/sandvik-coromant-lf123f17-2020d-corocuttm-1-2-shank-tool-for-parting-grooving.jpg)
R 2 674,90
inc. vat
In stock
SKU
5856792
CoroCut® 1-2 shank tool for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 shank tool for parting and grooving
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
LF - Functional Length | 150mm |
TQ - Torque | 4Nm |
WT - Weight Of Item | 689g |
OAL - Overall Length | 150mm |
OHX - Maximum Overhang | 22.352mm |
KAPR - Tool Cutting Edge Angle | 90deg |
BAWS - Workpiece Side Body Angle | 0deg |
WF - Functional Width | 25.5mm |
HF - Functional Height | 25mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
Insert Thickness | 4.3321mm |
H - Shank Height | 25mm |
CW - Cutting Width | 2.5mm |
B - Shank Width | 25mm |
CDX - Cutting Depth Maximum | 17mm |
CUTDIA - Work Piece Parting Diameter Maximum | 42.2mm |
ORDCODE | LF123F17-2525D |
ADINTMS - Adaptive Interface Machine Direction | M_VKT01_A2525_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-13 15:35:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCF2_2 |
Hand | L |
MIID - Master Insert Identification | N123F2-0250-0002-CM |
SSC - Insert Seat Size Code | F |
CICT - Cutting Item Count | 1 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
