R 2 674,90
inc. vat
In stock
SKU
5732569

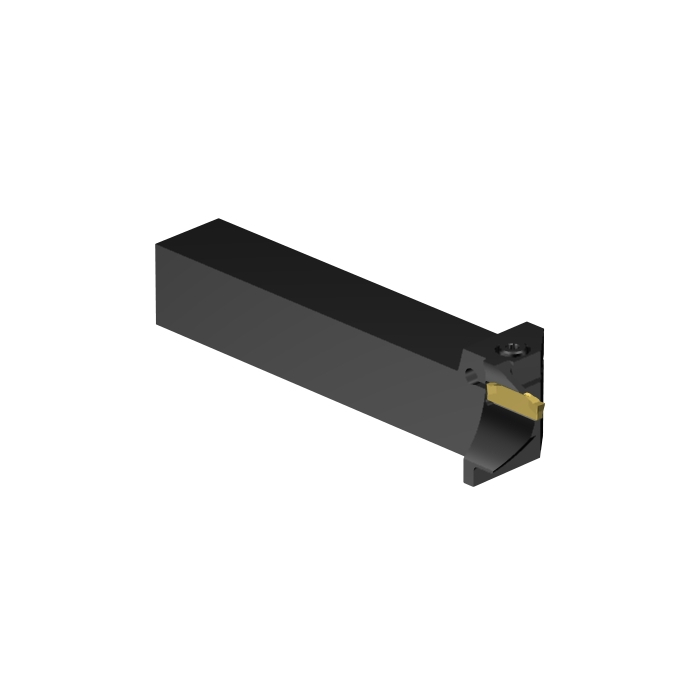

CoroCut® 1-2 shank tool for face grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 shank tool for face grooving
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
LF - Functional Length | 152.4mm |
TQ - Torque | 4Nm |
WT - Weight Of Item | 0.715kg |
OAL - Overall Length | 152.4mm |
OHX - Maximum Overhang | 31.9278mm |
LSC - Clamping Length | 120.4722mm |
KAPR - Tool Cutting Edge Angle | 90deg |
BAWS - Workpiece Side Body Angle | 0deg |
WF - Functional Width | 26.3906mm |
HF - Functional Height | 25.4mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
Insert Thickness | 4.3321mm |
H - Shank Height | 25.4mm |
CW - Cutting Width | 3mm |
B - Shank Width | 25.4mm |
CDX - Cutting Depth Maximum | 11.94mm |
DAXN - Minimum Axial Groove Outside Diameter | 40mm |
DAXX - Maximum Axial Groove Outside Diameter | 44mm |
ORDCODE | LF123G047-16B-034B |
ADINTMS - Adaptive Interface Machine Direction | M_VKT01_B1616_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-08-18 15:18:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCG2_7 |
Hand | L |
MIID - Master Insert Identification | N123G2-0300-0003-TF |
SSC - Insert Seat Size Code | G |
CICT - Cutting Item Count | 1 |
AXGSUP - Axial Groove Support Direction | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
