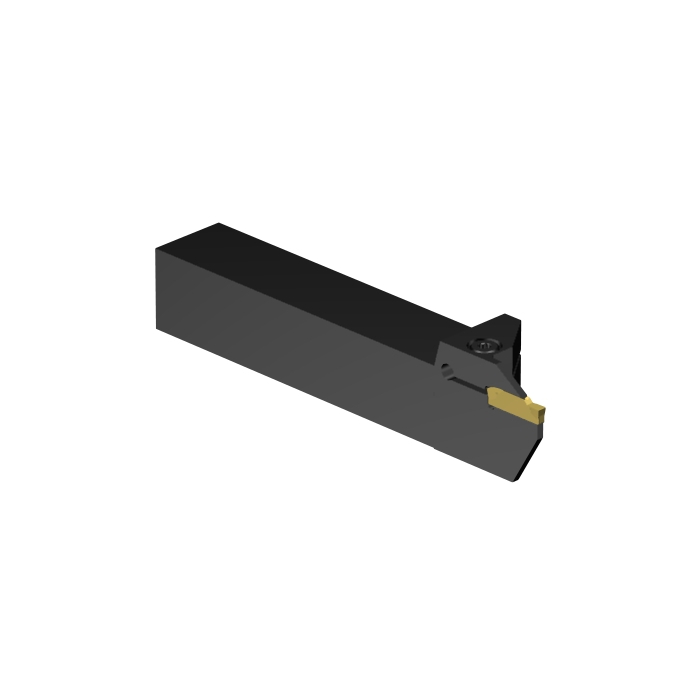

Sandvik Coromant LF123G079-16B CoroCut™ 1-2 shank tool for parting and grooving

Name: Sandvik Coromant LF123G079-16B CoroCut™ 1-2 shank tool for parting and grooving
SKU: 5733414
Price: 2674.90 ZAR
Availability: InStock

Be the first to review this product

R 2 674,90 inc. vat

In stock

SKU

5733414

CoroCut® 1-2 shank tool for parting and grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® 1-2 shank tool for parting and grooving

More Information

More Information
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	152.4mm
TQ - Torque	5Nm
WT - Weight Of Item	0.671kg
OAL - Overall Length	152.4mm
OHX - Maximum Overhang	22.352mm
KAPR - Tool Cutting Edge Angle	90deg
BAWS - Workpiece Side Body Angle	0deg
WF - Functional Width	26.0096mm
HF - Functional Height	25.4mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	4.3321mm
H - Shank Height	25.4mm
CW - Cutting Width	3mm
B - Shank Width	25.4mm
CDX - Cutting Depth Maximum	20.066mm
ORDCODE	LF123G079-16B
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_B1616_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-07-06 17:04:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CCG2_7
Hand	L
MIID - Master Insert Identification	N123G2-0300-0003-TF
SSC - Insert Seat Size Code	G
CICT - Cutting Item Count	1
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
