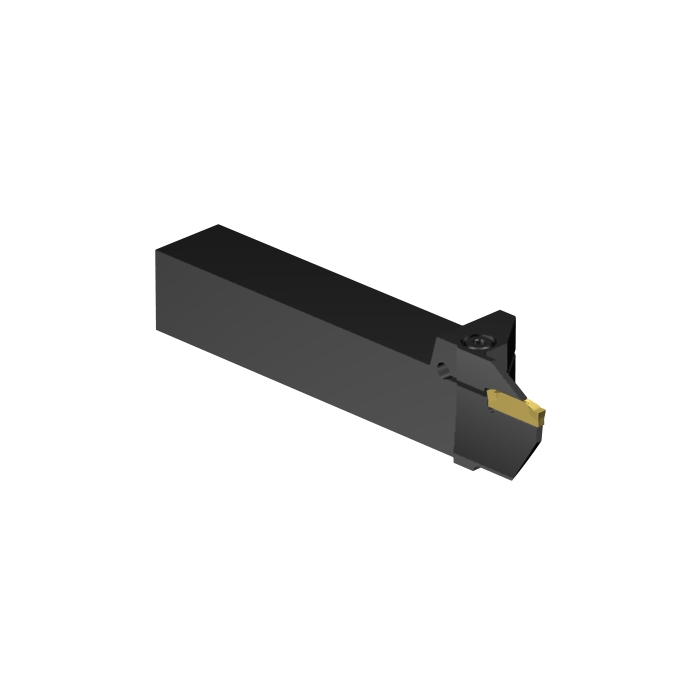

Sandvik Coromant LF123G22-2525B-130B CoroCut™ 1-2 shank tool for face grooving
R 2 941,70
inc. vat
Out of stock
SKU
5735139
CoroCut® 1-2 shank tool for face grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 shank tool for face grooving
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| LF - Functional Length | 150mm |
| TQ - Torque | 4.5Nm |
| WT - Weight Of Item | 639g |
| OAL - Overall Length | 150mm |
| OHX - Maximum Overhang | 43mm |
| LSC - Clamping Length | 107mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 26mm |
| HF - Functional Height | 25mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| Insert Thickness | 4.3321mm |
| H - Shank Height | 25mm |
| CW - Cutting Width | 3mm |
| B - Shank Width | 25mm |
| CDX - Cutting Depth Maximum | 22mm |
| DAXN - Minimum Axial Groove Outside Diameter | 136mm |
| DAXX - Maximum Axial Groove Outside Diameter | 300mm |
| ORDCODE | LF123G22-2525B-130B |
| ADINTMS - Adaptive Interface Machine Direction | M_VKT01_A2525_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-18 15:33:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCG2_7 |
| Hand | L |
| MIID - Master Insert Identification | N123G2-0300-0003-TF |
| SSC - Insert Seat Size Code | G |
| CICT - Cutting Item Count | 1 |
| AXGSUP - Axial Groove Support Direction | 2 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
