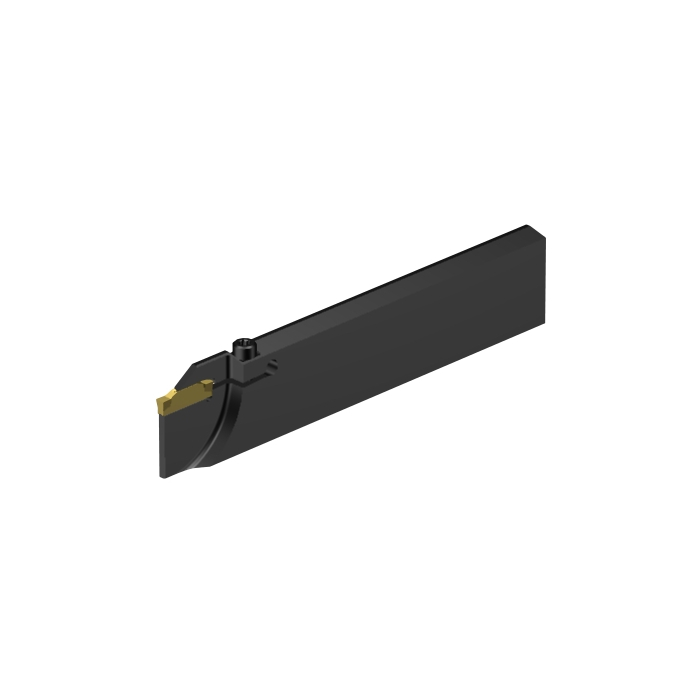

Sandvik Coromant LF123G25-25B1 CoroCut™ 1-2 blade for parting
R 2 674,90
inc. vat
In stock
SKU
5735140
CoroCut® 1-2 blade for parting
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 blade for parting
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| LF - Functional Length | 150mm |
| TQ - Torque | 4.5Nm |
| WT - Weight Of Item | 0.247kg |
| OAL - Overall Length | 150mm |
| OHX - Maximum Overhang | 45mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 2.675mm |
| HF - Functional Height | 25mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| Insert Thickness | 4.3321mm |
| H - Shank Height | 31.9mm |
| CW - Cutting Width | 3mm |
| CDX - Cutting Depth Maximum | 25mm |
| CUTDIA - Work Piece Parting Diameter Maximum | 50mm |
| ORDCODE | LF123G25-25B1 |
| ADINTMS - Adaptive Interface Machine Direction | M_PMC012_C025R_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-13 15:06:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCG2_7 |
| Hand | L |
| MIID - Master Insert Identification | N123G2-0300-0003-TF |
| SSC - Insert Seat Size Code | G |
| CICT - Cutting Item Count | 1 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
