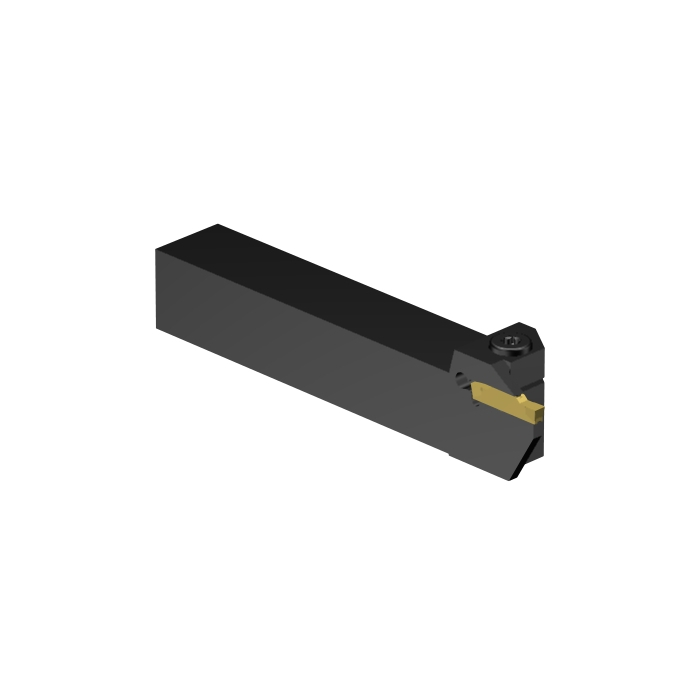

Sandvik Coromant LF123H13-2525BM CoroCut™ 1-2 shank tool for parting and grooving

R 2 674,90 inc. vat
In stock
SKU
5732844
CoroCut® 1-2 shank tool for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 shank tool for parting and grooving
More Information
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 150mm
TQ - Torque 4.5Nm
WT - Weight Of Item 681g
OAL - Overall Length 150mm
OHX - Maximum Overhang 34mm
KAPR - Tool Cutting Edge Angle 90deg
BAWS - Workpiece Side Body Angle 0deg
WF - Functional Width 26mm
HF - Functional Height 25mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
Insert Thickness 4.35mm
H - Shank Height 25mm
CW - Cutting Width 4mm
B - Shank Width 25mm
CDX - Cutting Depth Maximum 13mm
ORDCODE LF123H13-2525BM
ADINTMS - Adaptive Interface Machine Direction M_VKT01_A2525_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-08-18 15:19:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_CCH2_5
Hand L
MIID - Master Insert Identification N123H2-0400-0004-TF
SSC - Insert Seat Size Code H
CICT - Cutting Item Count 1
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
