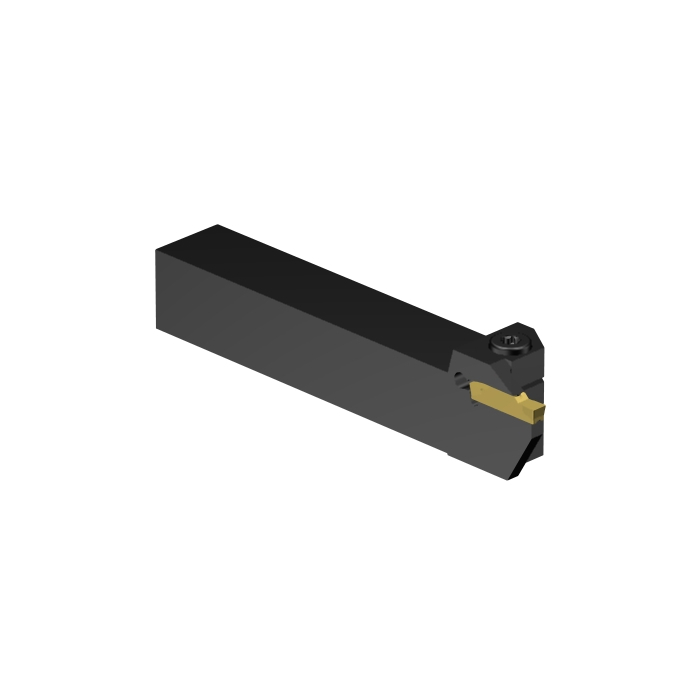

Sandvik Coromant LF123J13-2525BM CoroCut™ 1-2 shank tool for parting and grooving

Name: Sandvik Coromant LF123J13-2525BM CoroCut™ 1-2 shank tool for parting and grooving
SKU: 5732402
Price: 2674.90 ZAR
Availability: InStock

Be the first to review this product

R 2 674,90 inc. vat

In stock

SKU

5732402

CoroCut® 1-2 shank tool for parting and grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® 1-2 shank tool for parting and grooving

More Information

More Information
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	150mm
TQ - Torque	5Nm
WT - Weight Of Item	684g
OAL - Overall Length	150mm
OHX - Maximum Overhang	34mm
KAPR - Tool Cutting Edge Angle	90deg
BAWS - Workpiece Side Body Angle	0deg
WF - Functional Width	26mm
HF - Functional Height	25mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	4.35mm
H - Shank Height	25mm
CW - Cutting Width	5mm
B - Shank Width	25mm
CDX - Cutting Depth Maximum	13mm
ORDCODE	LF123J13-2525BM
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_A2525_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 15:17:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CCJ2_4
Hand	L
MIID - Master Insert Identification	N123J2-0500-0002-CM
SSC - Insert Seat Size Code	J
CICT - Cutting Item Count	1
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
