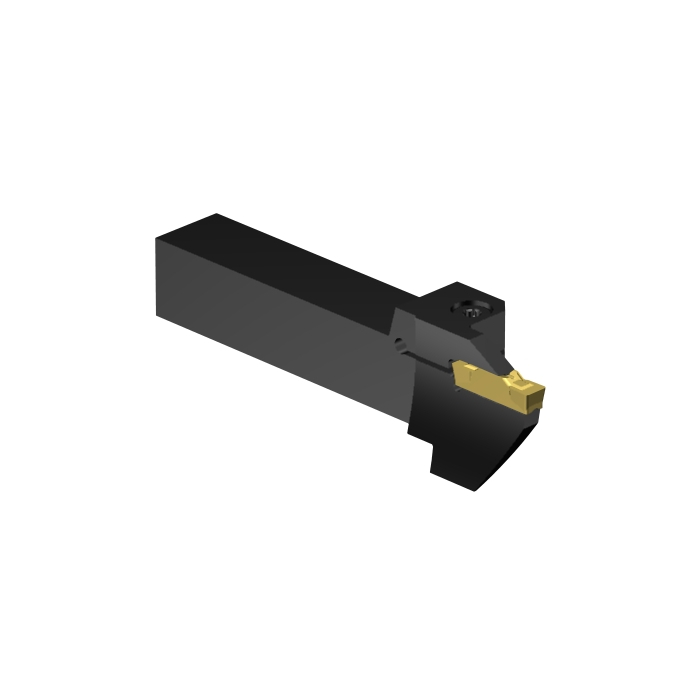

Sandvik Coromant LF123L28-2525B-075BM CoroCut™ 1-2 shank tool for face grooving

R 2 941,70 inc. vat
In stock
SKU
5733298
CoroCut® 1-2 shank tool for face grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 shank tool for face grooving
More Information
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 150mm
TQ - Torque 5.8Nm
WT - Weight Of Item 674g
OAL - Overall Length 150mm
OHX - Maximum Overhang 56mm
LSC - Clamping Length 94mm
KAPR - Tool Cutting Edge Angle 90deg
BAWS - Workpiece Side Body Angle 0deg
WF - Functional Width 26mm
HF - Functional Height 25mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
Insert Thickness 6.05mm
H - Shank Height 25mm
CW - Cutting Width 8mm
B - Shank Width 25mm
CDX - Cutting Depth Maximum 28mm
DAXN - Minimum Axial Groove Outside Diameter 91mm
DAXX - Maximum Axial Groove Outside Diameter 150mm
ORDCODE LF123L28-2525B-075BM
ADINTMS - Adaptive Interface Machine Direction M_VKT01_A2525_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-08-18 15:20:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_CCL2_6
Hand L
MIID - Master Insert Identification N123L2-0800-0008-TF
SSC - Insert Seat Size Code L
CICT - Cutting Item Count 1
AXGSUP - Axial Groove Support Direction 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
