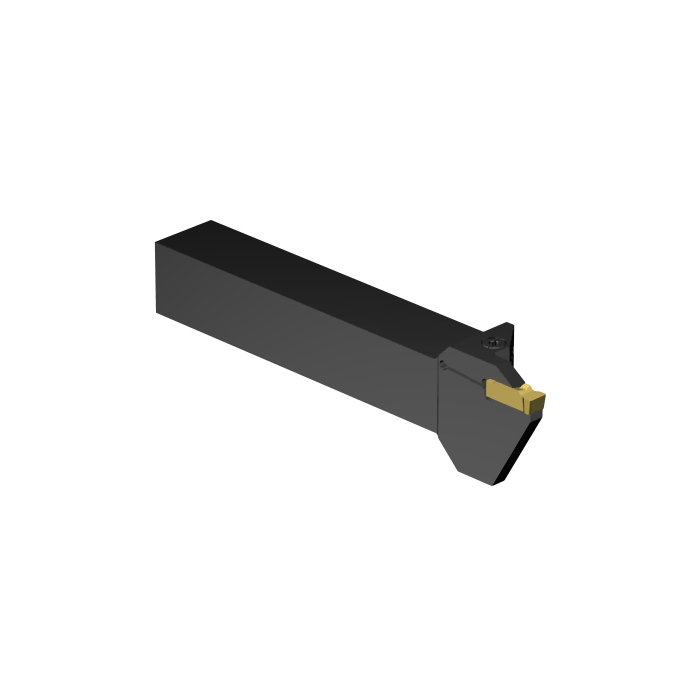

Sandvik Coromant LF123M32-4040B CoroCut™ 1-2 shank tool for parting and grooving
Next
Sandvik Coromant LF123L32-3232BM CoroCut™ 1-2 shank tool for parting and grooving
Previous
![Sandvik Coromant LF123M32-4040B CoroCut™ 1-2 shank tool for parting and grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/456780dab/sandvik-coromant-lf123m32-4040b-corocuttm-1-2-shank-tool-for-parting-and-grooving.jpg)
![Sandvik Coromant LF123L32-3232BM CoroCut™ 1-2 shank tool for parting and grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/45676a125/sandvik-coromant-lf123l32-3232bm-corocuttm-1-2-shank-tool-for-parting-and-grooving.jpg)
R 3 611,00
inc. vat
Out of stock
SKU
5733313
CoroCut® 1-2 shank tool for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 shank tool for parting and grooving
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
LF - Functional Length | 254mm |
TQ - Torque | 9Nm |
WT - Weight Of Item | 2.636kg |
OAL - Overall Length | 254mm |
OHX - Maximum Overhang | 63.9mm |
KAPR - Tool Cutting Edge Angle | 90deg |
BAWS - Workpiece Side Body Angle | 0deg |
WF - Functional Width | 40.2mm |
HF - Functional Height | 38.1mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
Insert Thickness | 7.05mm |
H - Shank Height | 38.1mm |
CW - Cutting Width | 11mm |
B - Shank Width | 38.1mm |
CDX - Cutting Depth Maximum | 32mm |
ORDCODE | LF123M125-24B |
ADINTMS - Adaptive Interface Machine Direction | M_VKT01_B2424_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-05-16 17:00:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCM1_1 |
Hand | L |
MIID - Master Insert Identification | N123M1-1100-0008-GM |
SSC - Insert Seat Size Code | M |
CICT - Cutting Item Count | 1 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
