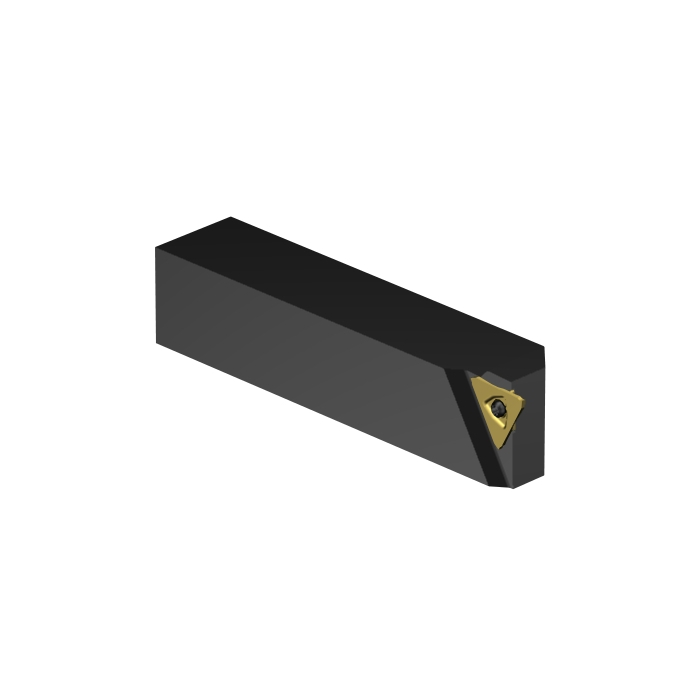

Sandvik Coromant LF123U023-20BM CoroCut™ 3 shank tool for parting and grooving

R 2 887,65 inc. vat
In stock
SKU
5733303
CoroCut® 3 shank tool for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 3 shank tool for parting and grooving
More Information
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 152.4mm
TQ - Torque 3Nm
WT - Weight Of Item 1.106kg
OAL - Overall Length 152.4mm
OHX - Maximum Overhang 23.012mm
KAPR - Tool Cutting Edge Angle 90deg
BAWS - Workpiece Side Body Angle 0deg
WF - Functional Width 31.75mm
HF - Functional Height 31.75mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
Insert Thickness 5.64mm
H - Shank Height 31.75mm
CW - Cutting Width 1.5mm
B - Shank Width 31.75mm
CDX - Cutting Depth Maximum 6.4mm
ORDCODE LF123U023-20BM
ADINTMS - Adaptive Interface Machine Direction M_VKT01_B2020_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-08-18 15:21:00.000
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_CDU_1
Hand L
MIID - Master Insert Identification N123U3-0150- CM
IFS - Insert Mounting Style Code 3
SSC - Insert Seat Size Code U
CICT - Cutting Item Count 1
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
