Sandvik Coromant LS151.22-2525-25 T-Max™ Q-Cut shank tool for undercutting

Name: Sandvik Coromant LS151.22-2525-25 T-Max™ Q-Cut shank tool for undercutting
SKU: 5734691
Price: 3193.55 ZAR
Availability: InStock

Be the first to review this product

R 3 193,55 inc. vat

In stock

SKU

5734691

T-Max® Q-Cut shank tool for undercutting

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

T-Max® Q-Cut shank tool for undercutting

More Information

More Information
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	150mm
TQ - Torque	3Nm
WT - Weight Of Item	0.74kg
OAL - Overall Length	150mm
OHX - Maximum Overhang	27mm
LSC - Clamping Length	123mm
RMPX - Maximum Ramping Angle	45deg
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
WF - Functional Width	25.6mm
HF - Functional Height	25mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	6.787mm
H - Shank Height	25mm
LPR - Protruding Length	150mm
CW - Cutting Width	3mm
B - Shank Width	25mm
CDX - Cutting Depth Maximum	1.5mm
ORDCODE	LS151.22-2525-25
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_A2525_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-04-07 01:19:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CB2G25_3
Hand	L

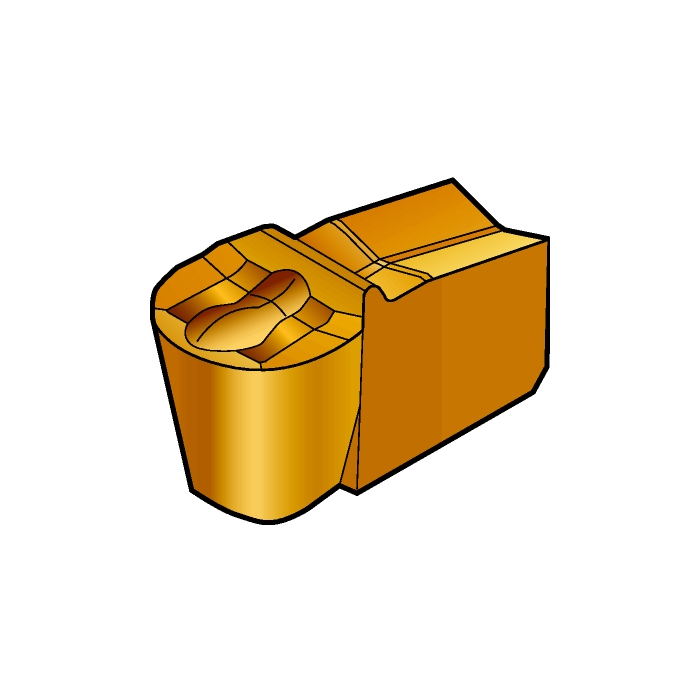

MIID - Master Insert Identification	N151.2-300-25- 4U
SSC - Insert Seat Size Code	25
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
