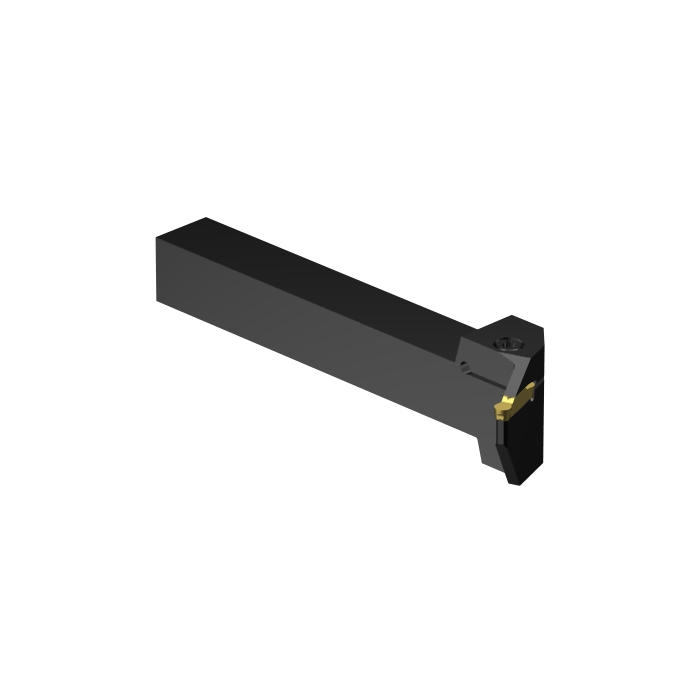

Sandvik Coromant LX123J062-16B-070 CoroCut™ 1-2 shank tool for profiling
R 3 398,25
inc. vat
In stock
SKU
5734856
CoroCut® 1-2 shank tool for profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 shank tool for profiling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| LF - Functional Length | 190mm |
| TQ - Torque | 5Nm |
| WT - Weight Of Item | 0.984kg |
| OAL - Overall Length | 190mm |
| OHX - Maximum Overhang | 40mm |
| LSC - Clamping Length | 150mm |
| RMPX - Maximum Ramping Angle | 20deg |
| BAWS - Workpiece Side Body Angle | 70deg |
| BAMS - Machine Side Body Angle | 0deg |
| WF - Functional Width | 42.4mm |
| HF - Functional Height | 25.4mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| Insert Thickness | 4.35mm |
| H - Shank Height | 25.4mm |
| LU - Usable Length | 16mm |
| CW - Cutting Width | 6mm |
| B - Shank Width | 25.4mm |
| ORDCODE | LX123J062-16B-070 |
| ADINTMS - Adaptive Interface Machine Direction | M_VKT01_B1616_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-18 15:33:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCJ2_7 |
| Hand | L |
| MIID - Master Insert Identification | N123J2-0600- RM |
| SSC - Insert Seat Size Code | J |
| CICT - Cutting Item Count | 1 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
