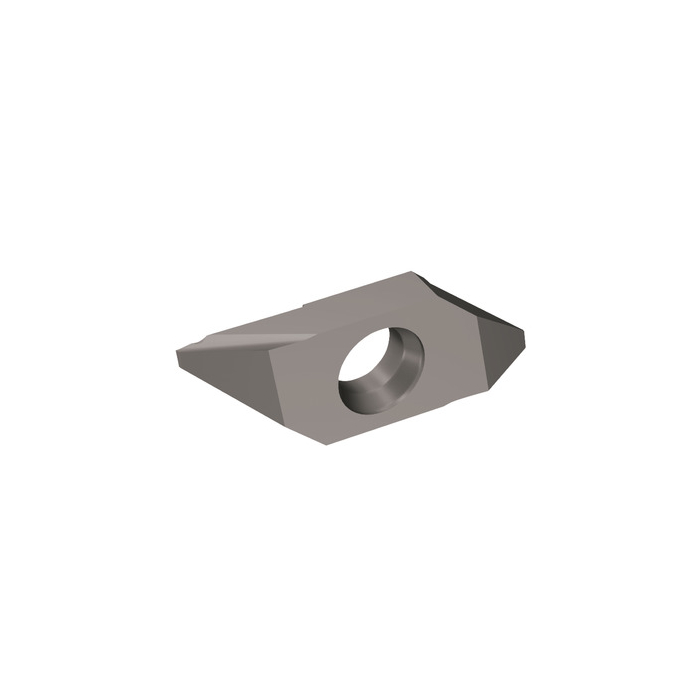

Sandvik Coromant MACL 3 150-R H13A CoroCut™ XS insert for parting
R 558,90
inc. vat
In stock
SKU
5733326
CoroCut® XS insert for parting
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® XS insert for parting
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.005kg |
| BAMS - Machine Side Body Angle | 0deg |
| AN - Clearance Angle Major | 6deg |
| Insert Thickness | 3.175mm |
| CW - Cutting Width | 1.5mm |
| CWTOLL - Cutting Width Lower Tolerance | -0.02mm |
| CWTOLU - Cutting Width Upper Tolerance | 0.02mm |
| REL - Corner Radius Left | 0.05mm |
| RER - Corner Radius Right | 0.05mm |
| CDX - Cutting Depth Maximum | 6.3mm |
| PSIRR - Major Right Hand Cutting Edge Angle | 15deg |
| RETOLL - Corner Radius Lower Tolerance | -0.03mm |
| RETOLU - Corner Radius Upper Tolerance | 0.03mm |
| CUTDIA - Work Piece Parting Diameter Maximum | 12mm |
| ORDCODE | MACL 3 150-R H13A |
| CHANGEDATE | 2022-06-23 09:59:00.000 |
| Hand | L |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | 3 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CE3L_1 |
| Grade | H13A |
| SUBSTRATE | HW |
| CBMD - Chip Breaker Manufacturer's Designation | MAC |
| CEDC - Cutting Edge Count | 2 |
