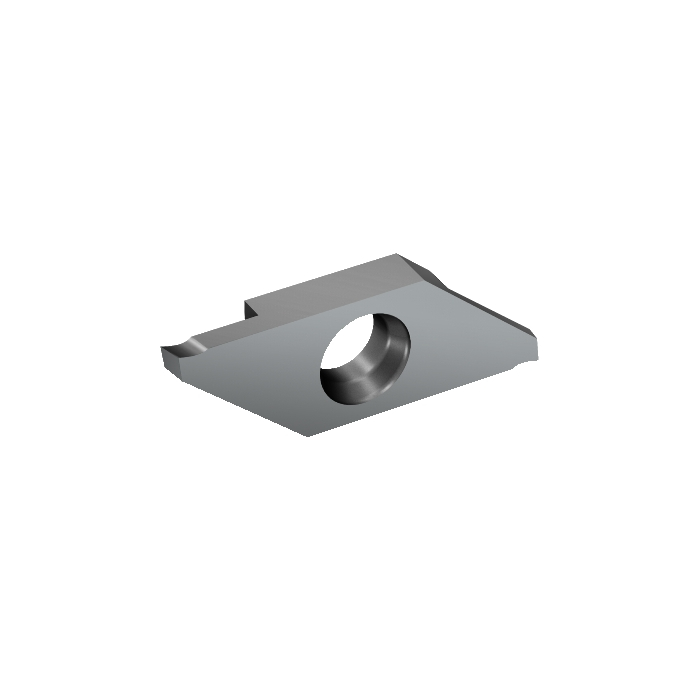

Sandvik Coromant MACR 3 070-L 1105 CoroCut™ XS insert for parting
R 696,90
inc. vat
In stock
SKU
6071730
CoroCut® XS insert for parting
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® XS insert for parting
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.022kg |
| BAMS - Machine Side Body Angle | 0deg |
| AN - Clearance Angle Major | 6deg |
| Insert Thickness | 3.175mm |
| CW - Cutting Width | 0.7mm |
| CWTOLL - Cutting Width Lower Tolerance | -0.02mm |
| CWTOLU - Cutting Width Upper Tolerance | 0.02mm |
| REL - Corner Radius Left | 0.05mm |
| RER - Corner Radius Right | 0.05mm |
| CDX - Cutting Depth Maximum | 4.3mm |
| PSIRL - Major Left Hand Cutting Edge Angle | 15deg |
| RETOLL - Corner Radius Lower Tolerance | -0.03mm |
| RETOLU - Corner Radius Upper Tolerance | 0.03mm |
| CUTDIA - Work Piece Parting Diameter Maximum | 8mm |
| ORDCODE | MACR 3 070-L 1105 |
| CHANGEDATE | 2022-09-21 11:41:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | 3 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CE3R_1 |
| Grade | 1105 |
| COATING | PVD TiAlN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | MAC |
| CEDC - Cutting Edge Count | 2 |
