Major Tech MT25 Compact DMM & Temp IP67 Auto

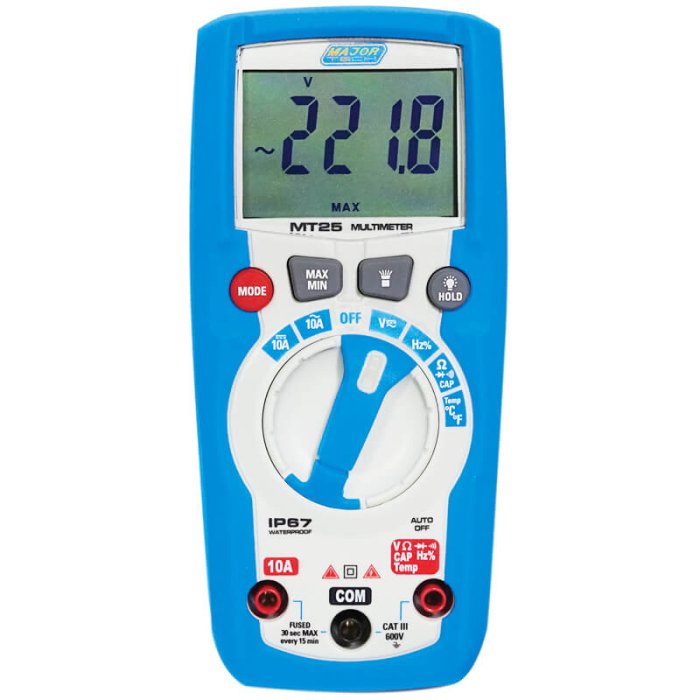

The MT25 Compact Digital Multimeter is a handheld unit that provides fast and accurate measurements with oversized high contrast LCD display and double-moulded plastic housing for safety & durability. With multiple functions that include AC/DC voltage, AC/DC current, resistance, continuity, capacitance, frequency, duty cycle, temperature and diode test. The MT25 also offers the added convenience of a built-in LED flashlight and tilt stand.
Accessories
- Soft Carrying Case
- MT810 Test leads
- MT660 Temperature Probe
- Instruction Manual
- 3 x AAA 1.5V Batteries
Technical Datasheet Instruction Manual
Additional information
| DC Voltage |
600V |
|---|---|
| DC Voltage resolution |
0.1mV |
| DC Voltage accuracy |
±( 1.2%+2 ) |
| AC Voltage |
600V |
| AC Voltage resolution |
1mV |
| AC voltage accuracy |
±(1.5%+10) |
| DC Current |
10A |
| DC Current resolution |
1mA |
| DC Current accuracy |
±(3%+5) |
| AC Current |
10A |
| AC current resolution |
1mA |
| AC Current accuracy |
±(3.0% +5) |
| Duty Cycle |
0.1 to 99.9% |
| Duty Cycle resolution |
0.10% |
| Duty Cycle accuracy |
±(1.2% +2) |
| Resistance |
40MΩ |
| Resistance resolution |
0.1Ω |
| Resistance accuracy |
±(1.2%+5) |
| Frequency |
9.999Hz to 9.999MHz |
| Frequency resolution |
0.10% |
| Frequency accuracy |
±(1.2%+2) |
| Capacitance |
4000µF |
| Capacitance resolution |
10pF |
| Capacitance accuracy |
±(3% +5) |
| Temperature |
-20°C to 760°C |
| Temperature resolution |
0.1°C |
| Temperature accuracy |
±( 3.0%+5) |
| Continuity |
Yes |
| Diode Test |
Yes |
| AC Bandwidth |
50.0Hz to 60.0Hz |
| Digital Display |
4000 |
| Over-range indication |
Yes |
| Input Impedance |
˃7.8MΩ DCV & ˃7.8MΩ VAC |
| Data Hold |
Yes |
| Back Light |
Yes |
| Enclosure |
Double-moulded waterproof IP67 |
| Low battery indication |
Yes |
| Power Supply |
3 X 1.5V AAA Batteries |
| Dimensions (L x B x H mm) |
147 x 68 x 50 mm |
| Weight (g) |
318g |
-
