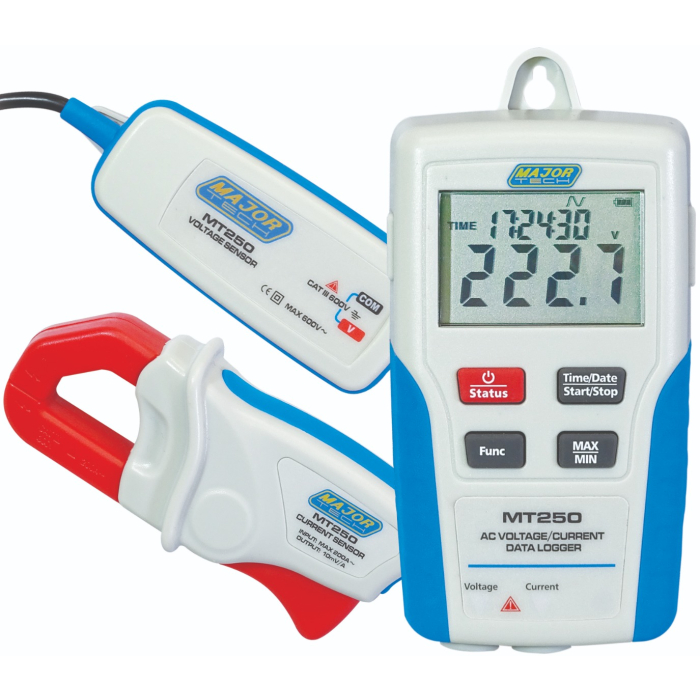

Major Tech MT250 AC Voltage & Current Data Logger
Special Price
R 5 129,00
inc. vat
Regular Price
R 6 359,50
inc. vat
In stock
SKU
MajMT250
Reliable nationwide shipping
Delivery in 4 - 5 days
The MT250 is designed for ease of use in recording AC Voltage and Current. The Logger can be programmed simply via USB interface from your PC. 1 second rapid sampling rate variable to 24 hours. LCD display of Voltage or Current for quick reference checks.
Accessories:
Carrying case
AAA Batteries
Test leads
Instruction manual
USB cable
USB Driver Instruction Manual
Additional information
| Weight |
248g |
|---|---|
| Internal Memory |
100,044 data points 1Ch, 50,022 per channel |
| Voltage resolution |
0.1V |
| Voltage (RMS) |
6-600.0V |
| Sampling Speed |
1second to 24Hour |
| Safety Specs |
IEC 61010-1 Cat III 300V |
| Power source DC |
4 x R6P |
| Power source AC |
External DC9V (special AC Adapter) |
| PC Communication |
USB |
| Measurements and Parameters |
Voltage, Current. |
| Included Accessories |
USB Cable, Voltage lead, Current Clamp, Manual, 4 x R6P Batteries |
| Dimensions |
114 x 63 x 34mm |
| Frequency Range |
40-1KHz |
| Display update period |
Real-time |
| Display Range |
LCD Display |
| Current resolution |
0.1A |
| Current (RMS) |
2-200A |
| Crest Factor |
2.5 or less:RMS (sine) 2% 1%f.s. 95% or less of each range |
| Allowable Input |
50/60Hz, 10% or more of the range Ch1 |
| Enclosure |
Over Moulded casing |
| Wiring connections |
2 Channel |
- Magnetic back plate for easy of attachment to metal surfaces
- Each channel can record up to 50022 data
- Date and Time Stamp
- Graphical and Printed Text information
- Battery or AC power supply
