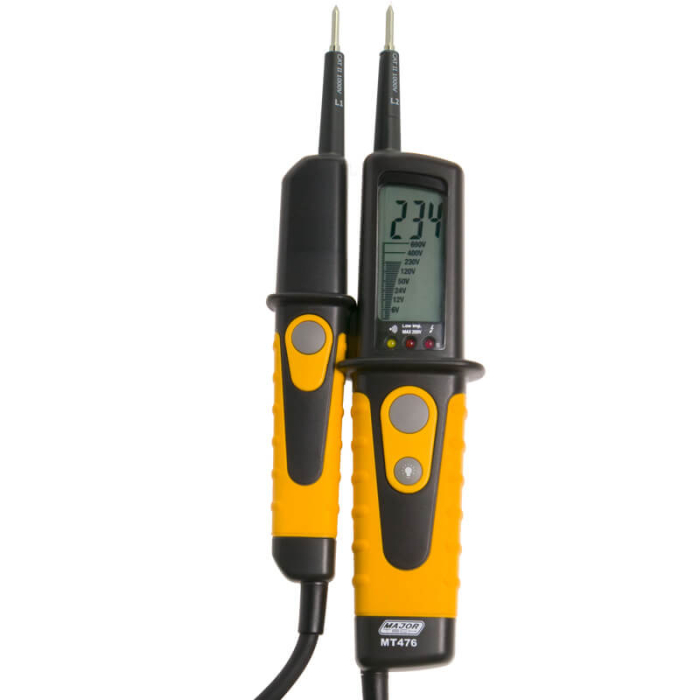

Major Tech MT476 LCD Voltage Tester ACV, DCV & Continuity, CAT IV 600V

R 2 150,50 inc. vat
In stock
SKU
MajMT476
Reliable nationwide shipping
Delivery in 4 - 5 days

The MT476 is IP64 and is a useful voltage tester designed to meet the Electrician requirements for a multitude of applications. This tester enables the user to determine whether or not a voltage is within the range required. The MT476 voltage tester incorporates a Low Impedance Test, which induces a basic load of approximately 2.1W at 690 volts. The MT476 meets the International Safety Standard IEC61010-1 CAT III 1000V and CATIV 600V. This voltage tester operates without a switch, and by simply placing the probes of the MT476 onto the circuit under test, the meter is automatically turned on and can measure the voltage, continuity or polarity test. This safety design ensures that if the user incorrectly handles the meter, danger is eliminated.

Features :

  • AC & DC Voltage detection from 6V to 690V AC and DC
  • Phase Rotation
  • 2000 Count LCD display
  • Double Injection IP64 housing
  • Low Impedance test
  • Built-in Flashlight
  • Polarity Detection
  • Rotary Field indication
  • Continuity test to 200
  • CAT IV 600V and CAT III 1000V

Accessories:
AAA Batteries
Instruction manual

Instructional Manual

DC Voltage 6€“ 690V DC Voltage resolution 1V DC Voltage accuracy ±(1.0% +3) AC Voltage 6€“ 690V AC Voltage resolution 1V AC voltage accuracy ±(1.5% +5) Rotary field 100€“ 400V Continuity Yes Continutity resolution greater than/equal to 200kΩ AC Bandwidth 50Hz to 60Hz Digital Display 2000 count Bargraph Yes Polarity Indication Yes Over-range indication Yes Low Input impedance greater than 6kΩ Flash Light Yes Enclosure Double injection IP64 Low battery indication Yes Power source 2 x R03 Weight 255g Dimensions 150 x 70 x 48mm
