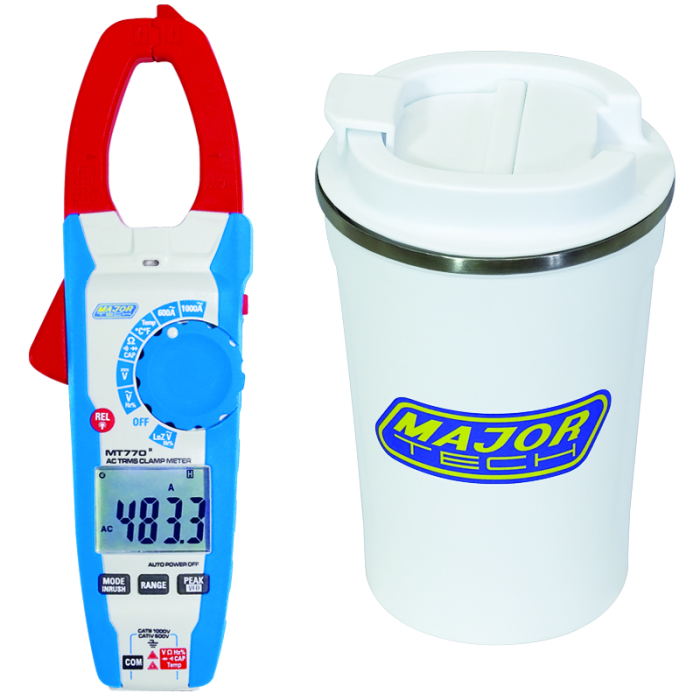

Major Tech MT770 1000A AC Clamp Meter
The MT770 1000A AC TRMS Clamp Meter has a 6000 count display and provides fast sampling time with high accuracy. The meter offers peak hold, 100ms Inrush current, Low input impedance and a low pass filter for accurate measurements of VFD signals with a convenient non-contact voltage function.
Features :
- Measures AC Current up to 1000A
- Measures AC/DC Voltage up to 1000V
- Resistance to 60M
- Temperature measurement to 1000°C
- Inrush Current
- 33mm clamp jaw opening
- VFD (Variable Frequency Drive)
- Non-contact voltage
- 6000 Count LCD Display
- Data Hold & Peak Hold function
- Diode Check & Continuity Buzzer
- Backlight
- Flashlight
- CAT IV 600V and CAT III 1000V
Accessories:
Soft Carrying Case
HDT1282 Comfigrip Test Set
MT660 Wire Probe (-20° to 250°C)
MT802 K-Type Adaptor
1.5V AAA Batteries
Instruction Manual
HDT3914 Crocodile Clips
| Jaw size |
33mm |
|---|---|
| AC Current |
1000A |
| AC current resolution |
10mA |
| AC Current accuracy |
±(2.5% +8) |
| DC Voltage |
1000V |
| DC Voltage resolution |
1mV |
| DC Voltage accuracy |
±(1.5% +2) |
| AC Voltage |
1000V |
| AC Voltage resolution |
1mV |
| AC voltage accuracy |
±(1.5% +5) |
| Resistance |
60MΩ |
| Resistance resolution |
0.1Ω |
| Resistance accuracy |
±(1.5% +2) |
| Frequency |
9.999Hz – 99.99kHz |
| Frequency resolution |
0.01Hz |
| Frequency accuracy |
±(1.2% +5) |
| Capacitance |
100mF |
| Capacitance resolution |
0.01nF |
| Capacitance accuracy |
±(3.0% +5) |
| Temperature |
-20 to 1000°C |
| Temperature resolution |
0.1°C |
| Temperature accuracy |
±(5.0°C +3) |
| Duty Cycle |
10.0% to 90.0% |
| Duty Cycle resolution |
0.1% |
| Duty Cycle accuracy |
±(1.2% +2) |
| Continuity |
Yes |
| Diode Test |
Yes |
| True RMS Measurements |
ACV, ACA |
| AC Bandwidth |
50Hz to 400Hz |
| Digital Display |
6000 |
| Non-Contact Voltage (NCV) |
Above 80V AC |
| Over-range indication |
Yes |
| Input Impedance |
˃10MΩ DCV & ˃10MΩ VAC |
| Low Frequency Input |
Yes |
| Min Max |
Yes |
| Variable Frequency Drive |
Yes |
| Inrush Current |
100mS |
| Peak hold |
Yes |
| Data Hold |
Yes |
| Back Light |
Yes |
| Flash Light |
Yes |
| Enclosure |
Double Injection moulding |
| Low battery indication |
Yes |
| Power source |
3 x LR03 (AAA) |
| Weight |
350g |
| Dimensions |
250 x 78 x 40mm |
| Safety Specs |
IEC61010-1 CatIV 600V |
-
