Major Tech MT965 Digital Vibration Meter
R 15 634,25
inc. vat
In stock
SKU
MajMT965
Reliable nationwide shipping
Delivery in 4 - 5 days

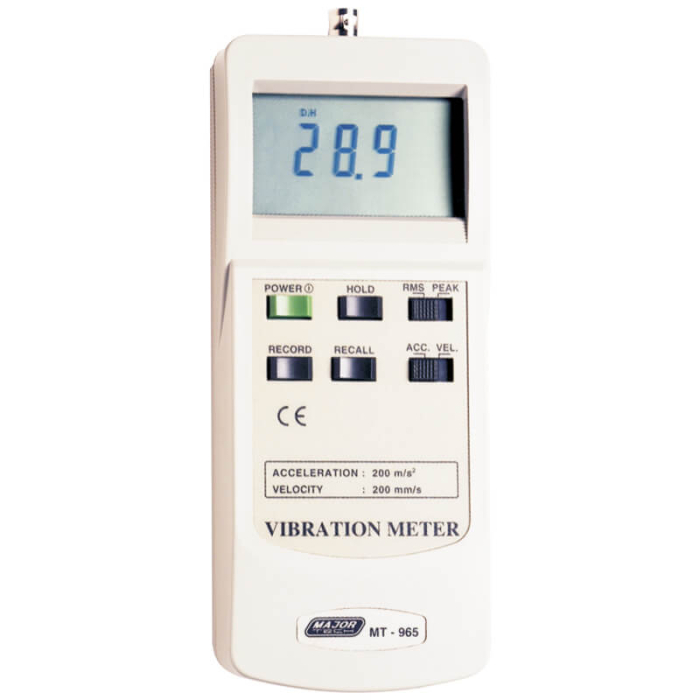

The MT965 is a portable vibration meter used for measuring acceleration and velocity. All industrial machinery vibrates therefore knowing the level of vibration is a useful guide for determining the machine condition. Poor balance, misalignment and looseness of the structure will cause the vibration level to increase. This is a sure sign that maintenance is needed. The MT965 has a microprocessor and is the ideal instrument for industrial vibration monitoring.
Accessories:
Carrying Case
9V Battery
Vibration sensor
Instruction manual
Magnetic base
Technical Datasheet Instruction Manual
ADDITIONAL INFORMATION
| Display |
LCD Screen |
|---|---|
| Low battery indication |
Yes |
| Weight meter |
274g |
| Velocity range |
0.5 to 199.9 mm/s² |
| Sample Rate |
1 second |
| Power source |
6F22 |
| Peak measurement |
Yes |
| Over-range indication |
Yes |
| Min Max Ave |
Yes |
| Frequency Range |
10Hz to 1KHz |
| Enclosure |
Over Moulded casing |
| Frequency accuracy |
± ( 5% +2) 160 Hz, 80Hz |
| Dimensions probe |
16mm dia x 29mm |
| Dimensions meter |
185 x 78 x 38mm |
| Data Hold |
Yes |
| Calibration point velocity |
50mm/s (160 Hz ) |
| Back Light |
Yes |
| Acceleration range |
0.5 to 199.9 m/s² |
| Weight probe |
38g |
- Measuring acceleration and velocity
- Velocity Range 200mm/s
- Min / Max
- Frequency 10Hz – 1KHz
- Separate vibration probe with magnetic base
- RMS and peak measurement
- Microprocessor based
