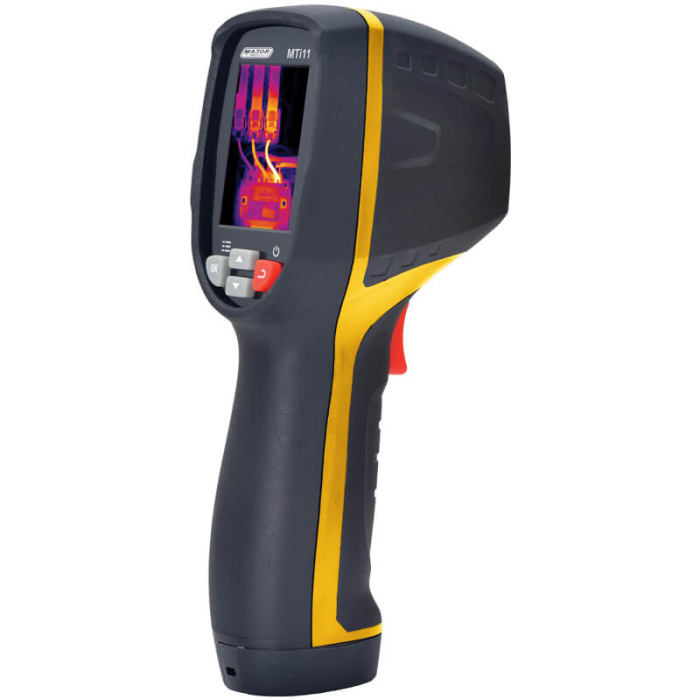

Major Tech MTi11 80 x 60 Pix-20-°C to +380-°C-thermal Camera
The MTi11 Thermal Imager is a compact handheld imaging camera used for predictive maintenance, equipment troubleshooting, and verification. Thermal images are displayed on the LCD and can be saved to internal memory. The MTi11 comes with a Bluetooth instant share function, thermal images can be transferred to a smartphone to be analyzed, shared and reported quickly. The MTi11 thermal imager is designed to make your work easier, more productive and effective. 80 x 80 resolution at 50Hz for real-time capture. Hot/cold spot marker automatically finds the hottest and coldest spots.
Accessories:
Hard Plastic Carrying Case
Instruction Manual
3.7V (13000mA) Lithium-Ion Battery
Technical Datasheet
Instruction Manual
Additional information
| Field of View |
21° x 21° |
|---|---|
| Spartial resolution (IFOV) |
4.53mrad |
| Thermal sensitivity/NETD |
˂0.1°C @ +30°C/100mK |
| Image Range |
50Hz |
| Focus mode |
Focus Free |
| Focal Length |
7.5mm |
| IR Resolution |
80 x 80 pixels |
| Display |
2‘ colour TFT LCD screen |
| Image Modes |
IR Image, Visual image, Image Fusion |
| Colour Palletes |
Iron, rainbow, grey, grey inverted |
| Temperature range |
-20°C to 380°C |
| Temperature accuracy |
±(2°C or ± 2%) |
| Spot |
Center spot |
| Emmisivity correction |
Variable 0.01 to 1.0 |
| Measurement corrections |
Emissivity, reflected temperature |
| Images format |
Bitmap (.bmp) with 6400 points |
| Bluetooth |
BLE 4.0 |
| Power source |
3.7V 1300mAH Lithium ion,>6 hours operating time |
| Input system |
DC 5V |
| Charging system |
DC 5V 1A USB Charger |
| Enclosure |
Over moulded case |
| Weight |
260g |
| Dimensions |
175 x 58 x 70mm |
- 80 x 80 pixel thermal imaging system.
- 6400 points real temperature fast measurements
- Hot, Cold, Center Spot Temperature.
- 2” easy-to-read, bright graphical TFT display
- 50Hz frame rate
- Instant share & save via Bluetooth to iOS and Android smart devices
- Scene temperature range Lock function.
- LED flashlight
- Easy to use function menu
- Up to 8 hours running time with rechargeable batteries
- Smart and compact design
- Rugged and Industrial design casing
-
