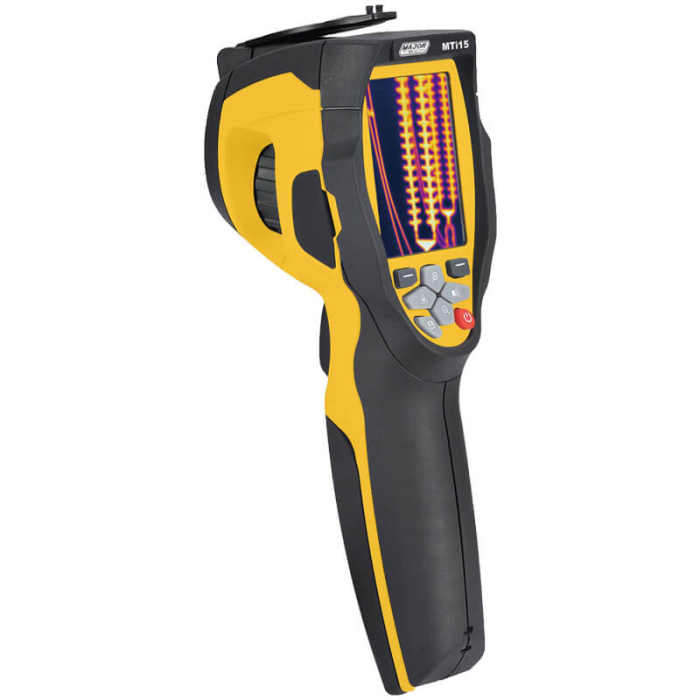

Major Tech MTi15 160 x 120 Pix, -20 °C to +350 °C, Thermal Camera
The MTi15 Thermal Imager is designed for non-contact detection and calculation of apparent surface temperature. This fully radiometric imager is ideal for troubleshooting electrical systems, electro-mechanical equipment, process equipment, HVAC/R equipment and others.
The MTi15 Thermal Imager with 160 x 120 resolution at 50Hz offers real-time capture and a large touch screen with a toolbar that will assist you to fine-tune and analyze images quickly. Temperature range from -20°C to 350°C, 20X continuous zoom, picture-in-picture, Hot/Cold spot marker, voice comment recording and text annotation on images.
Applications:
Plant / General Maintenance
HVAC/R
Transportation / Automotive
Cooling and Reheating
Serving areas and Cold storage
Food service equipment
Accessories:
Carrying Case
LI-ion Battery
Instruction Manual
Charger
Software
USB cable
8GB SD Card
Additional information
| Field of View |
19° x 25°/0.5m |
|---|---|
| Spartial resolution (IFOV) |
3.33mrad |
| Thermal sensitivity/NETD |
˂0.1°C @ +30°C |
| Image Range |
50Hz |
| Focus mode |
Manual |
| Zoom |
1 x 32 x continuous, digital zoom |
| Focal Length |
9mm |
| IR Resolution |
120 x 160 pixels |
| Display |
2.8 LCD, 240 x 320 pixels |
| Image Modes |
IR Image, Visual image, Image Fusion |
| Colour Palletes |
Iron, rainbow, grey, grey inverted |
| Temperature range |
Low -20°C to 150°C, High 0°C to 350°C |
| Temperature accuracy |
±(2°C or ± 2%) |
| Spot |
Center spot |
| Isotherm |
Detect high/low temperature/interval |
| Emmisivity correction |
Variable 0.01 to 1.0 |
| Measurement corrections |
Emissivity, reflected temperature |
| Videos |
8Gbytes Micro SD card |
| Videos format |
Std MPEG-4, 1280 x 960@30fps, on memory card> 60minutes |
| Videos storage mode |
IR/Visual images: simultaneous storage of IR and visual images |
| Images format |
Std JPEG, incl measurement data, on memory card >1000 pictures |
| Image storage mode |
IR/Visual images: simultaneous storage of IR and visual images |
| Built-in |
5 Megapixels |
| Built-in digital lens data |
FOV 59° |
| Interfaces |
USB-mini,audio, HDMI |
| Video Out |
HDMI |
| Power source |
3.7V 2600mAH Lithium ion, 4 hours operating time |
| Input system |
DC 5V |
| Charging system |
In camera (AC adapter) |
| Enclosure |
Overmould casing |
| Weight |
500g |
| Dimensions |
224 x 77 x 96mm |
- 160 x120 Resolution
- Field of view 22.6 x 29.8°
- 50Hz Image Frequency
- Real-time capture
- 2.8” LCD display
- Focal length 9mm
- Minimum focus distance 0.5m
- Spatial resolution 3.33mrad
- Thermal sensitivity/NETD < 0.06°C /60mK
- Temperature -20°C to 350°C
- Picture-in-Picture
- Text annotation on images / Voice comments
- 32X Continuous Digital Zoom
- 5 Megapixels Digital Camera
- Area Min/Max with Auto Hot/Cold Spot Mark
- USB interface with 8GB Micro SD card
-
-
-
-
-
