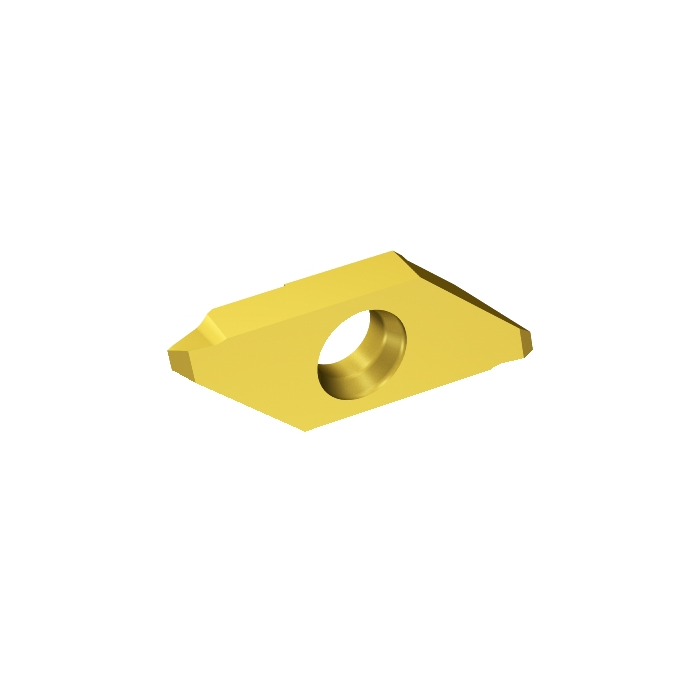

Sandvik Coromant MATL 3 60-C H13A CoroCut™ XS insert for thread turning
Next
Sandvik Coromant MATL 3 60-A H13A CoroCut™ XS insert for thread turning
Previous
![Sandvik Coromant MATL 3 60-C H13A CoroCut™ XS insert for thread turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/46357d054/sandvik-coromant-matl-3-60-c-h13a-corocuttm-xs-insert-for-thread-turning.jpg)
![Sandvik Coromant MATL 3 60-A H13A CoroCut™ XS insert for thread turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/46355de66/sandvik-coromant-matl-3-60-a-h13a-corocuttm-xs-insert-for-thread-turning.jpg)
R 696,90
inc. vat
In stock
SKU
5735474
CoroCut® XS insert for thread turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® XS insert for thread turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 5.3g |
AN - Clearance Angle Major | 6deg |
RE - Corner Radius | 0.05mm |
Insert Thickness | 3.175mm |
D1 - Fixing Hole Diameter | 4.8mm |
TPN - Minimum Thread Pitch | 0.35mm |
TPX - Maximum Thread Pitch | 1mm |
TPIN - Minimum Threads Per Inch | 24 |
TPIX - Maximum Threads Per Inch | 72 |
HA - Theoretical Thread Height | 0.75mm |
HB - Thread Height Difference | 0.05mm |
PDX - Profile Distance Ex | 0.6mm |
PDY - Profile Distance Ey | 0mm |
ORDCODE | MATL 3 60-A 1025 |
CHANGEDATE | 2022-06-23 10:05:00.000 |
Hand | L |
IFS - Insert Mounting Style Code | 3 |
SSC - Insert Seat Size Code | 3 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CE3L_1 |
Grade | 1025 |
COATING | PVD TiAlN+TiN |
SUBSTRATE | HC |
THFT - Thread Form Type | VP60 |
TPT - Thread Profile Type | P |
TTP - Thread Type | EXT |
CEDC - Cutting Edge Count | 2 |
NT - Tooth Count | 1 |
