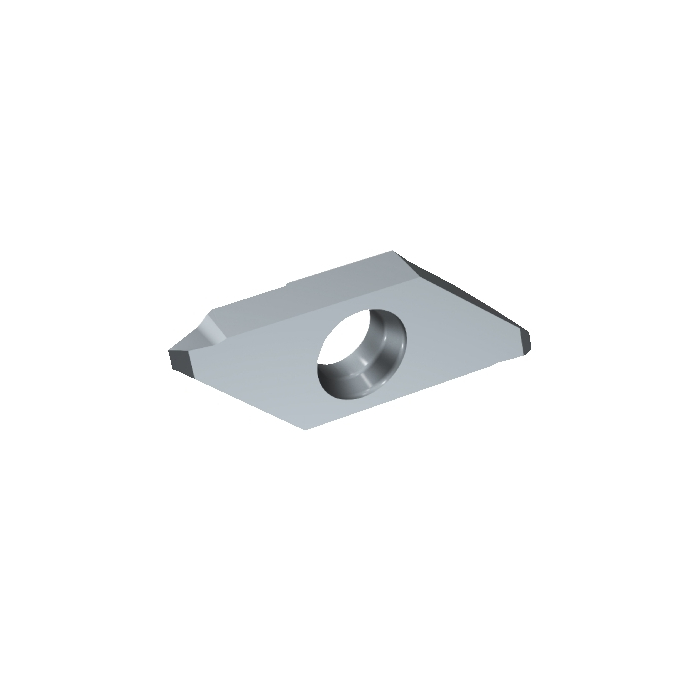

Sandvik Coromant MATR 3 60-C H13A CoroCut™ XS insert for thread turning
R 558,90
inc. vat
In stock
SKU
5735463
CoroCut® XS insert for thread turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® XS insert for thread turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 5.3g |
| AN - Clearance Angle Major | 6deg |
| RE - Corner Radius | 0.05mm |
| Insert Thickness | 3.175mm |
| D1 - Fixing Hole Diameter | 4.8mm |
| TPN - Minimum Thread Pitch | 0.35mm |
| TPX - Maximum Thread Pitch | 1mm |
| TPIN - Minimum Threads Per Inch | 24 |
| TPIX - Maximum Threads Per Inch | 72 |
| HA - Theoretical Thread Height | 0.75mm |
| HB - Thread Height Difference | 0.05mm |
| PDX - Profile Distance Ex | 0.6mm |
| PDY - Profile Distance Ey | 0mm |
| ORDCODE | MATR 3 60-C H13A |
| CHANGEDATE | 2022-06-23 10:05:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | 3 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CE3R_1 |
| Grade | H13A |
| SUBSTRATE | HW |
| THFT - Thread Form Type | VP60 |
| TPT - Thread Profile Type | P |
| TTP - Thread Type | EXT |
| CEDC - Cutting Edge Count | 2 |
| NT - Tooth Count | 1 |
