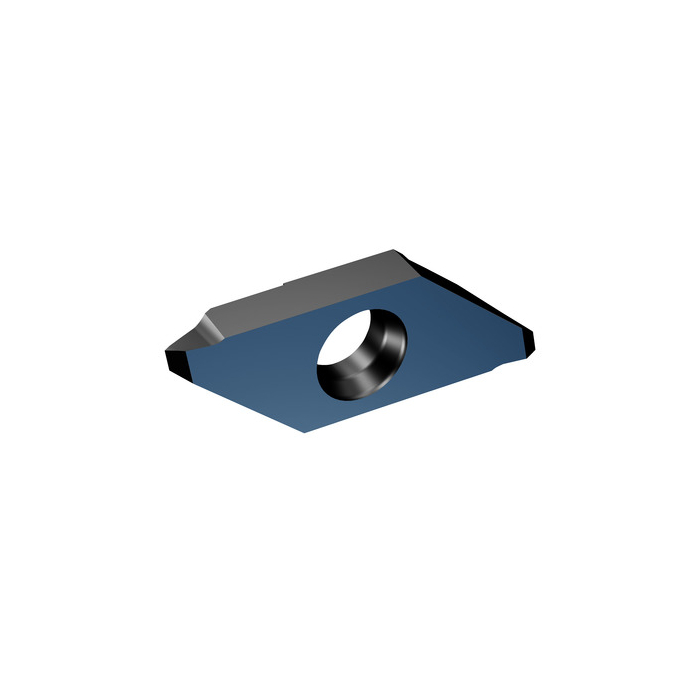

Sandvik Coromant MATR 3-WH01F-280-A 1105 CoroCut™ XS insert for thread turning
Previous
![Sandvik Coromant MATR 3-WH01F-280-A 1105 CoroCut™ XS insert for thread turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/60009da5e/sandvik-coromant-matr-3-wh01f-280-a-1105-corocuttm-xs-insert-for-thread-turning.jpg)
R 844,10
inc. vat
In stock
SKU
6765623
CoroCut® XS insert for thread turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® XS insert for thread turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 5.4g |
AN - Clearance Angle Major | 6deg |
RE - Corner Radius | 0.19mm |
Insert Thickness | 3.175mm |
D1 - Fixing Hole Diameter | 4.8mm |
HA - Theoretical Thread Height | 1.06mm |
HB - Thread Height Difference | 0.19mm |
TPI - Threads Per Inch | 19 |
PDX - Profile Distance Ex | 0.38mm |
PDY - Profile Distance Ey | 0mm |
ORDCODE | MATR 3-WH01F-190-A 1105 |
CHANGEDATE | 2022-06-23 13:13:00.000 |
STDNO - Standard Number | BS 84-1955 |
Hand | R |
IFS - Insert Mounting Style Code | 3 |
SSC - Insert Seat Size Code | 3 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CE3R_1 |
Grade | 1105 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
THFT - Thread Form Type | WH55 |
TPT - Thread Profile Type | F |
TTP - Thread Type | EXT |
TCTR - Thread Tolerance Class | CLASSA |
CEDC - Cutting Edge Count | 2 |
NT - Tooth Count | 1 |
