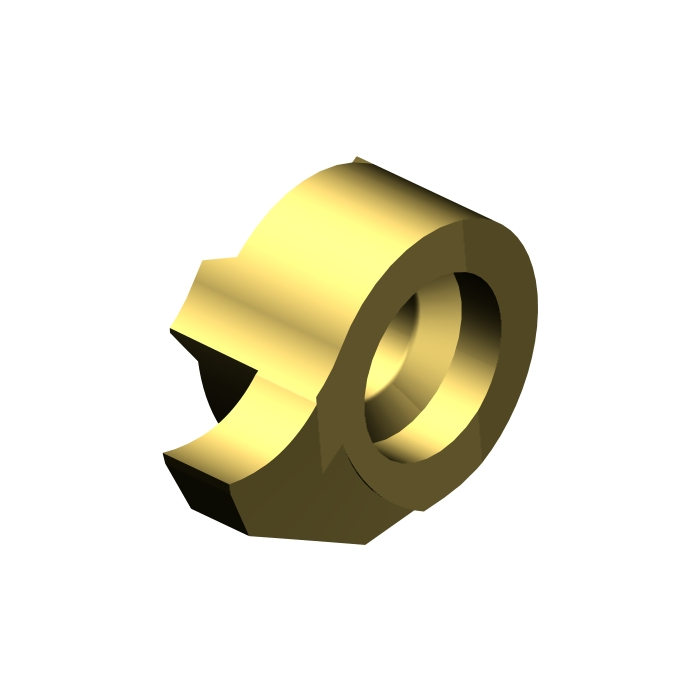

Sandvik Coromant MB-07G200-00-11R 1025 CoroCut™ MB solid carbide head for grooving
Next
Sandvik Coromant MB-07G200-00-10R 1025 CoroCut™ MB solid carbide head for grooving
Previous
![Sandvik Coromant MB-07G200-00-11R 1025 CoroCut™ MB solid carbide head for grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/464576430/sandvik-coromant-mb-07g200-00-11r-1025-corocuttm-mb-solid-carbide-head-for-grooving.jpg)
![Sandvik Coromant MB-07G200-00-10R 1025 CoroCut™ MB solid carbide head for grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/4645565f4/sandvik-coromant-mb-07g200-00-10r-1025-corocuttm-mb-solid-carbide-head-for-grooving.jpg)
R 378,35
inc. vat
In stock
SKU
5735622
CoroCut® MB solid carbide head for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® MB solid carbide head for grooving
DCON - Connection Diameter | 7mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 3.9mm |
WT - Weight Of Item | 2g |
OAL - Overall Length | 4.7mm |
OHX - Maximum Overhang | 3.9mm |
KAPR - Tool Cutting Edge Angle | 90deg |
DMIN - Minimum Bore Diameter | 11mm |
BAWS - Workpiece Side Body Angle | 90deg |
WF - Functional Width | 6.8mm |
HF - Functional Height | 0mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
CW - Cutting Width | 2mm |
CWTOLL - Cutting Width Lower Tolerance | 0mm |
CWTOLU - Cutting Width Upper Tolerance | 0.05mm |
CDX - Cutting Depth Maximum | 2.8mm |
CHWL - Chamfer Width Left Hand | 0.04mm |
CHWR - Chamfer Width Right Hand | 0.04mm |
PSIRL - Major Left Hand Cutting Edge Angle | 0deg |
PSIRR - Major Right Hand Cutting Edge Angle | 0deg |
ORDCODE | MB-07G200-00-11L 1025 |
ADINTMS - Adaptive Interface Machine Direction | M_SIMD_C0070_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-06-23 10:07:00.000 |
Hand | L |
Grade | 1025 |
COATING | PVD TiAlN+TiN |
SUBSTRATE | HC |
CEDC - Cutting Edge Count | 1 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
