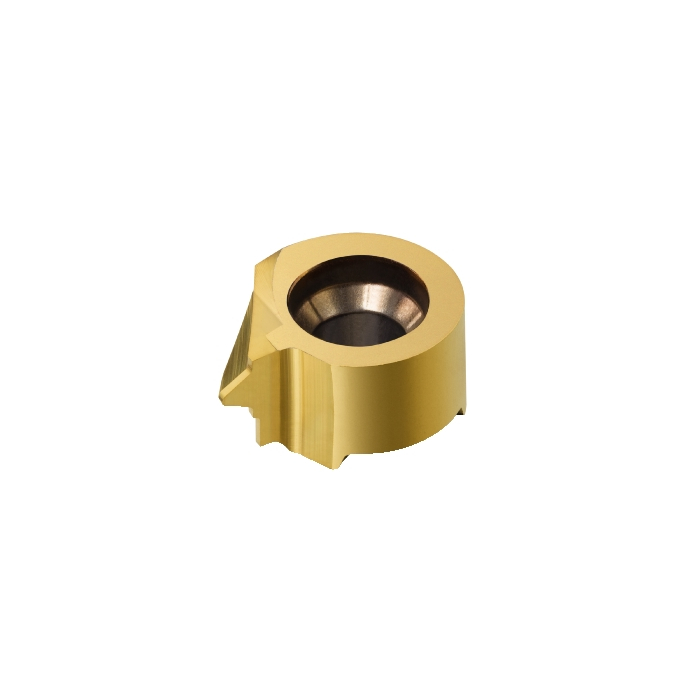

Sandvik Coromant MB-07TH110WH-10R 1025 CoroCut™ MB solid carbide head for thread turning

R 488,75 inc. vat
In stock
SKU
5735682
CoroCut® MB solid carbide head for thread turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® MB solid carbide head for thread turning
More Information
DCON - Connection Diameter 7mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 2.3mm
WT - Weight Of Item 1.8g
OAL - Overall Length 3.8mm
OHX - Maximum Overhang 2.3mm
DMIN - Minimum Bore Diameter 10mm
WF - Functional Width 5.8mm
HF - Functional Height 0mm
RE - Corner Radius 0.31mm
LPR - Protruding Length 3.8mm
CDX - Cutting Depth Maximum 1.48mm
HA - Theoretical Thread Height 1.84mm
HB - Thread Height Difference 0.36mm
TPI - Threads Per Inch 11
ORDCODE MB-07TH110WH-10R 1025
ADINTMS - Adaptive Interface Machine Direction M_SIMD_C0070_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-06-23 10:07:00.000
STDNO - Standard Number BS 2779-1973
Hand R
Grade 1025
COATING PVD TiAlN+TiN
SUBSTRATE HC
THFT - Thread Form Type WH55
TPT - Thread Profile Type F
TTP - Thread Type INT
TCTR - Thread Tolerance Class CLASSA
CEDC - Cutting Edge Count 1
NT - Tooth Count 1
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
