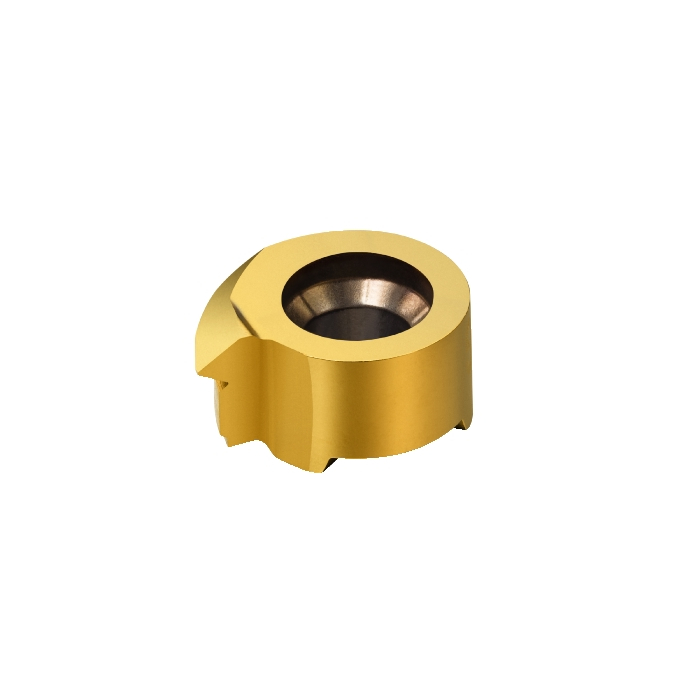

Sandvik Coromant MB-07TH140SA-10R 1025 CoroCut™ MB solid carbide head for thread turning
Next
Sandvik Coromant MB-07TH140WH-10L 1025 CoroCut™ MB solid carbide head for thread turning
Previous
R 488,75
inc. vat
In stock
SKU
5735688
CoroCut® MB solid carbide head for thread turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® MB solid carbide head for thread turning
DCON - Connection Diameter | 7mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 3.2mm |
WT - Weight Of Item | 1.8g |
OAL - Overall Length | 3.9mm |
OHX - Maximum Overhang | 3.2mm |
DMIN - Minimum Bore Diameter | 10mm |
WF - Functional Width | 5.8mm |
HF - Functional Height | 0mm |
LPR - Protruding Length | 3.8mm |
CDX - Cutting Depth Maximum | 0.98mm |
HA - Theoretical Thread Height | 1.59mm |
HB - Thread Height Difference | 0.19mm |
CF - Spot Chamfer | 0.22mm |
TPI - Threads Per Inch | 14 |
ORDCODE | MB-07TH140UN-10R 1025 |
ADINTMS - Adaptive Interface Machine Direction | M_SIMD_C0070_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-06-23 10:07:00.000 |
STDNO - Standard Number | ISO 5864-1978 |
Hand | R |
Grade | 1025 |
COATING | PVD TiAlN+TiN |
SUBSTRATE | HC |
THFT - Thread Form Type | UN60 |
TPT - Thread Profile Type | F |
TTP - Thread Type | INT |
TCTR - Thread Tolerance Class | 2B |
CEDC - Cutting Edge Count | 1 |
NT - Tooth Count | 1 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
