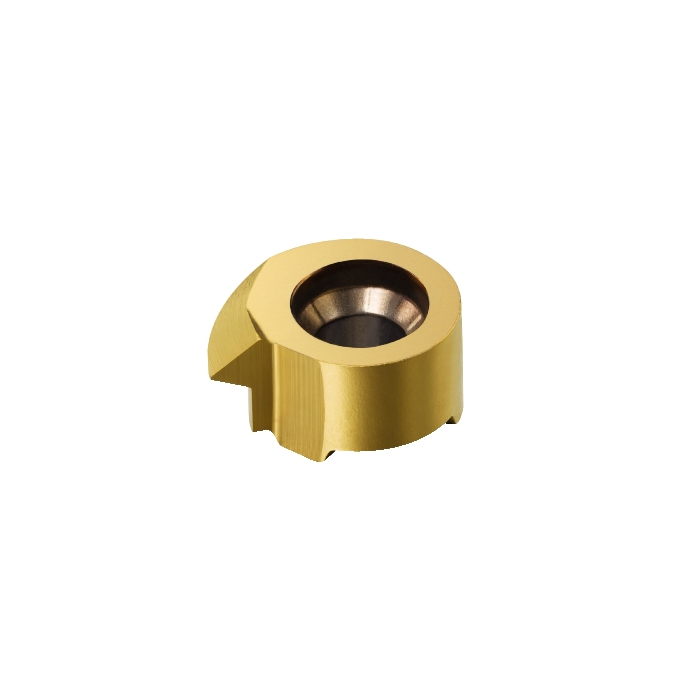

Sandvik Coromant MB-07TH150VM-10R 1025 CoroCut™ MB solid carbide head for thread turning
R 443,90
inc. vat
In stock
SKU
5736170
CoroCut® MB solid carbide head for thread turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® MB solid carbide head for thread turning
| DCON - Connection Diameter | 7mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 3mm |
| WT - Weight Of Item | 0.002kg |
| OAL - Overall Length | 3.8mm |
| OHX - Maximum Overhang | 3mm |
| DMIN - Minimum Bore Diameter | 10mm |
| WF - Functional Width | 5.8mm |
| HF - Functional Height | 0mm |
| LPR - Protruding Length | 3.8mm |
| CDX - Cutting Depth Maximum | 0.81mm |
| TPN - Minimum Thread Pitch | 1.5mm |
| TPX - Maximum Thread Pitch | 1.75mm |
| TPIN - Minimum Threads Per Inch | 15 |
| TPIX - Maximum Threads Per Inch | 17 |
| HA - Theoretical Thread Height | 1.13mm |
| HB - Thread Height Difference | 0.16mm |
| CF - Spot Chamfer | 0.18mm |
| ORDCODE | MB-07TH150VM-10R 1025 |
| ADINTMS - Adaptive Interface Machine Direction | M_SIMD_C0070_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-06-23 10:12:00.000 |
| Hand | R |
| Grade | 1025 |
| COATING | PVD TiAlN+TiN |
| SUBSTRATE | HC |
| THFT - Thread Form Type | VP60 |
| TPT - Thread Profile Type | P |
| TTP - Thread Type | INT |
| CEDC - Cutting Edge Count | 1 |
| NT - Tooth Count | 1 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
