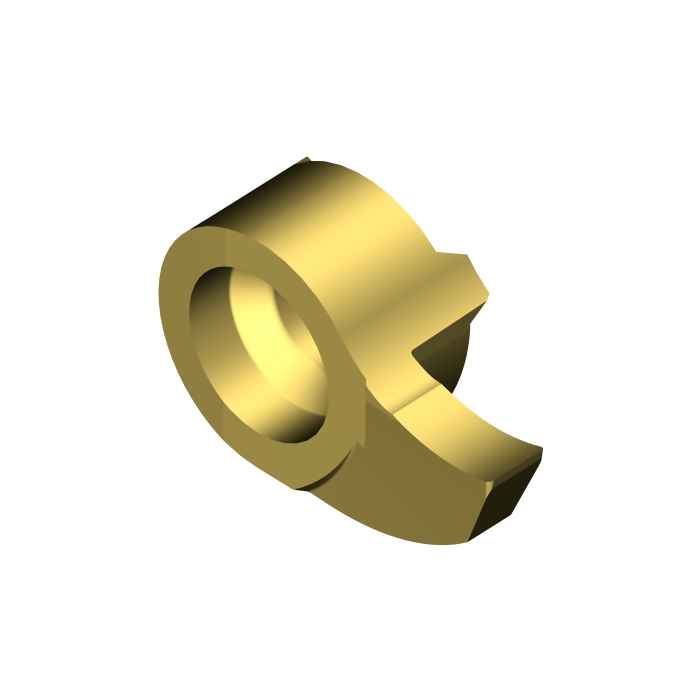

Sandvik Coromant MB-09G250-02-16R 1025 CoroCut™ MB solid carbide head for grooving

R 422,05 inc. vat
In stock
SKU
5735727
CoroCut® MB solid carbide head for grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® MB solid carbide head for grooving
More Information
DCON - Connection Diameter 9mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 5.2mm
WT - Weight Of Item 0.005kg
OAL - Overall Length 5.9mm
OHX - Maximum Overhang 5.2mm
KAPR - Tool Cutting Edge Angle 90deg
DMIN - Minimum Bore Diameter 16mm
BAWS - Workpiece Side Body Angle 90deg
WF - Functional Width 10.5mm
HF - Functional Height 0mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
CW - Cutting Width 2.5mm
CWTOLL - Cutting Width Lower Tolerance 0mm
CWTOLU - Cutting Width Upper Tolerance 0.05mm
REL - Corner Radius Left 0.2mm
RER - Corner Radius Right 0.2mm
CDX - Cutting Depth Maximum 5.5mm
PSIRL - Major Left Hand Cutting Edge Angle 0deg
PSIRR - Major Right Hand Cutting Edge Angle 0deg
RETOLL - Corner Radius Lower Tolerance -0.02mm
RETOLU - Corner Radius Upper Tolerance 0.02mm
ORDCODE MB-09G250-02-16R 1025
ADINTMS - Adaptive Interface Machine Direction M_SIMD_C0090_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-06-23 10:08:00.000
Hand R
Grade 1025
COATING PVD TiAlN+TiN
SUBSTRATE HC
CEDC - Cutting Edge Count 1
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
