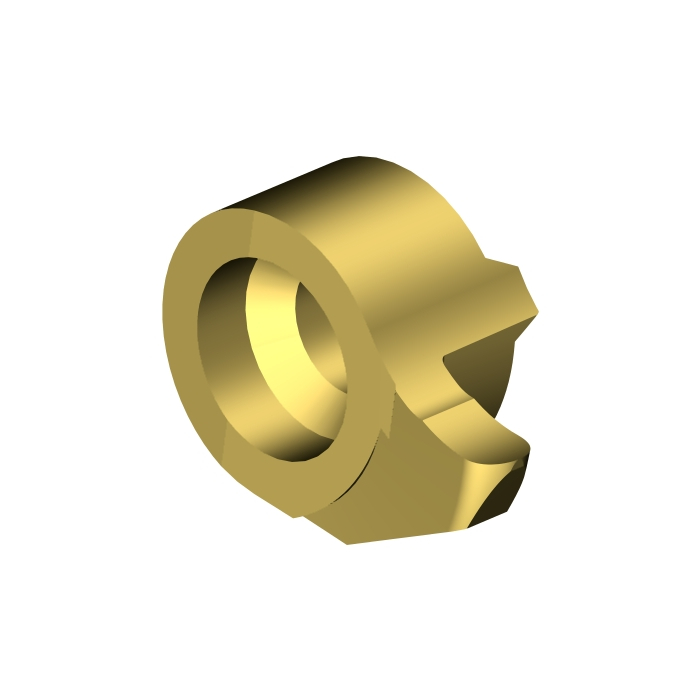

Sandvik Coromant MB-09R220-11-14R 1025 CoroCut™ MB solid carbide head for profiling
R 448,50
inc. vat
In stock
SKU
5735845
CoroCut® MB solid carbide head for profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® MB solid carbide head for profiling
| DCON - Connection Diameter | 9mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 5.3mm |
| WT - Weight Of Item | 2g |
| OAL - Overall Length | 6mm |
| OHX - Maximum Overhang | 5.3mm |
| DMIN - Minimum Bore Diameter | 14mm |
| BAWS - Workpiece Side Body Angle | 90deg |
| WF - Functional Width | 9mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| RE - Corner Radius | 1.1mm |
| CW - Cutting Width | 2.2mm |
| CWTOLL - Cutting Width Lower Tolerance | 0mm |
| CWTOLU - Cutting Width Upper Tolerance | 0.05mm |
| CDX - Cutting Depth Maximum | 4mm |
| PSIRL - Major Left Hand Cutting Edge Angle | 0deg |
| PSIRR - Major Right Hand Cutting Edge Angle | 0deg |
| RETOLL - Corner Radius Lower Tolerance | -0.02mm |
| RETOLU - Corner Radius Upper Tolerance | 0.02mm |
| ORDCODE | MB-09R220-11-14R 1025 |
| ADINTMS - Adaptive Interface Machine Direction | M_SIMD_C0090_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-06-23 10:09:00.000 |
| Hand | R |
| Grade | 1025 |
| COATING | PVD TiAlN+TiN |
| SUBSTRATE | HC |
| CEDC - Cutting Edge Count | 1 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
