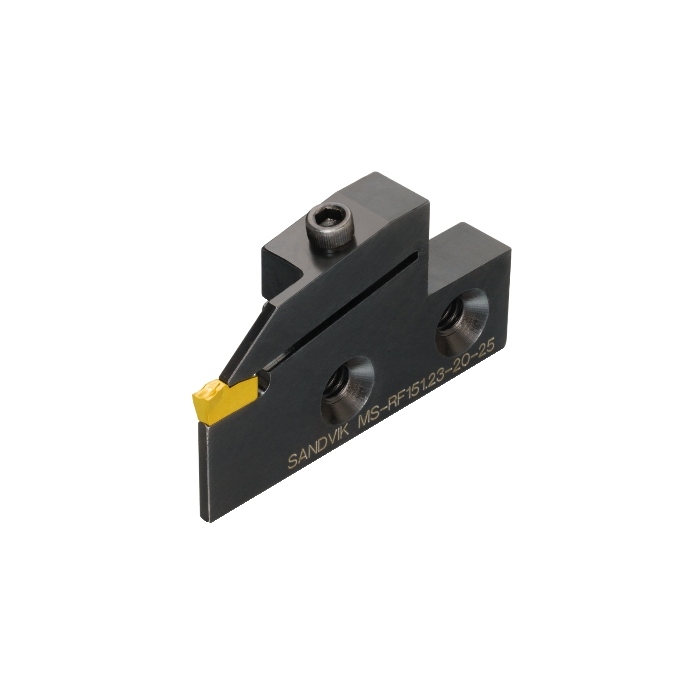

Sandvik Coromant MS-RF151.23-26-40 T-Max™ Q-Cut cartridge for parting and grooving
R 2 019,40
inc. vat
In stock
SKU
5736367
T-Max® Q-Cut cartridge for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® Q-Cut cartridge for parting and grooving
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| LF - Functional Length | 68.072mm |
| WT - Weight Of Item | 0.1kg |
| OAL - Overall Length | 68.072mm |
| OHX - Maximum Overhang | 50.038mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 11.2014mm |
| HF - Functional Height | 22.098mm |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| Insert Thickness | 8.106mm |
| H - Shank Height | 18mm |
| CW - Cutting Width | 3.9624mm |
| CDX - Cutting Depth Maximum | 26mm |
| CUTDIA - Work Piece Parting Diameter Maximum | 26mm |
| ORDCODE | MS-RF151.23-26-40 |
| ADINTMS - Adaptive Interface Machine Direction | M_PMC011_C0180_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-12-20 20:23:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CB2G40_4 |
| Hand | R |
| MIID - Master Insert Identification | N151.2-A156-40- 3F |
| SSC - Insert Seat Size Code | 40 |
| CICT - Cutting Item Count | 1 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
