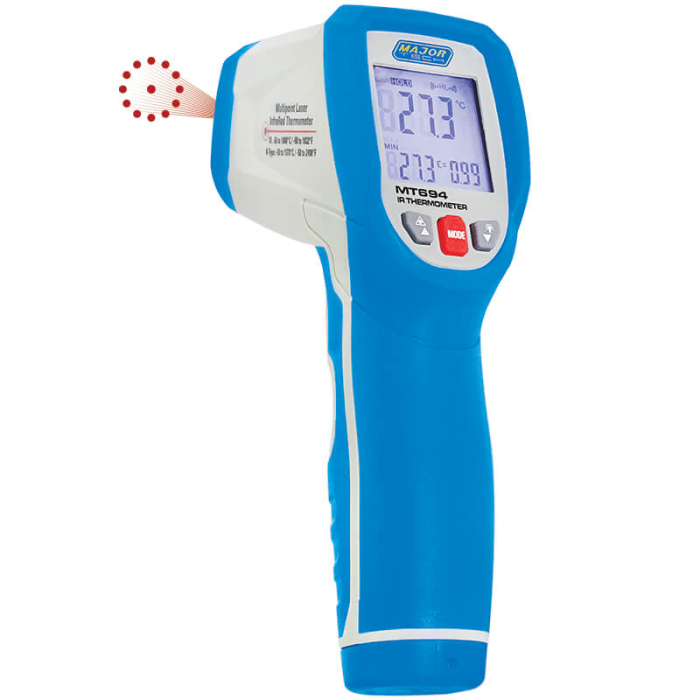

The MT694 is a small and compact pistol grip type infrared thermometer which can provide fast and accurate readings for most surface temperature measurements due to its sampling rate of 150 milliseconds. The distance to spot ratio is 20:1 and the temperature range is from -50°C to 1000°C. This meter features a multipoint laser which increases the target accuracy when the unit is at the optimum distance from the object being measured. Special features include adjustable emissivity from 0.1 to 1.0, Response time 150mS, max hold, large backlit LCD display, High and Low alarm and a trigger lock for continuous use.
Accessories:
- Carrying Case
- 2 x AAA Batteries
- Instruction Manual
- Type-K Probe
Application:
- Mechanical / Electrical Equipment
- Measuring temperature of patients in a hospital without touching them
- Checking heater or oven temperature for calibration and control
- Checking for hot spots in fire-fighting
- Monitoring materials in processes involving heating or cooling
ADDITIONAL INFORMATION
| Infrared temperature range |
-50°C to 1000°C |
|---|---|
| Infrared temp resolution |
0.1°C |
| Infrared temp accuracy |
±(1% ± 1°C) |
| Response time |
150ms |
| Spectral Response |
8 to 14um |
| Display |
LCD Display |
| Spot Ration |
20 : 1 |
| Adjustable Emissivity |
0.10 to 1.0 |
| Laser Targeting |
Multipoint |
| Type-K Temperature Range |
-50°C – 1350°C |
| Type-K Temp Resolution |
0.1°C |
| Type-K Temp Accuracy |
±(0.5% ± 1.5°C) |
| Min/Max/Diff/Ave |
Max |
| Hi/Low Alarm |
Yes |
| Back Light |
Yes |
| Enclosure |
Moulded |
| Low battery indication |
Yes |
| Power Supply |
2 x 1.5V AA Batteries |
| Weight |
163g |
| Dimensions |
146 x 104 x 43mm |
- Spot Ratio 20:1
- Temperature -50 to 1000°C
- Type-K -50 to 1370°C
- Adjustable Emissivity
- 0.1°C Resolution
- 150ms Sampling Time
- Built-in Circular Laser Pointer
- White Backlit LCD Display
- Trigger Lock – Automatic Data Hold
- High and Low Alarm Settings
- 2m Drop Tested
- IP54 Protection Grade
