Sandvik Coromant N123E2-0200-0002-GM 1145 CoroCut™ 1-2 insert for grooving Previous Sandvik Coromant N123E2-0200-0002-GM 1145 CoroCut™ 1-2 insert for grooving

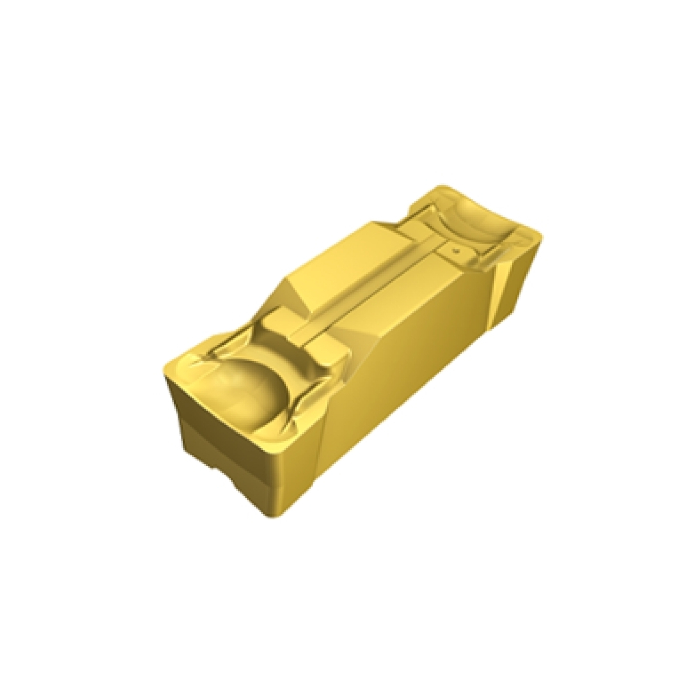

main product photo

Sandvik Coromant N123E2-0200-0002-GM 2135 CoroCut™ 1-2 insert for grooving

Sandvik Coromant
Be the first to review this product
R 440,45 inc. vat
In stock
SKU
5735788
CoroCut® 1-2 insert for grooving
Add to Compare
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 insert for grooving
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 2.3g
BAMS - Machine Side Body Angle 0deg
AN - Clearance Angle Major 7deg
Insert Thickness 4.3321mm
CW - Cutting Width 2mm
CWTOLL - Cutting Width Lower Tolerance 0mm
CWTOLU - Cutting Width Upper Tolerance 0.1mm
REL - Corner Radius Left 0.2mm
RER - Corner Radius Right 0.2mm
CDX - Cutting Depth Maximum 18.8mm
RETOLL - Corner Radius Lower Tolerance -0.1mm
RETOLU - Corner Radius Upper Tolerance 0.1mm
LIG - Insert Gauge Length 19.71mm
ORDCODE N123E2-0200-0002-GM 2135
CHANGEDATE 2022-06-23 10:09:00.000
Hand N
IFS - Insert Mounting Style Code 7
SSC - Insert Seat Size Code E
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_CCE2_1
Grade 2135
COATING CVD TiCrN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation GM
CEDC - Cutting Edge Count 2
