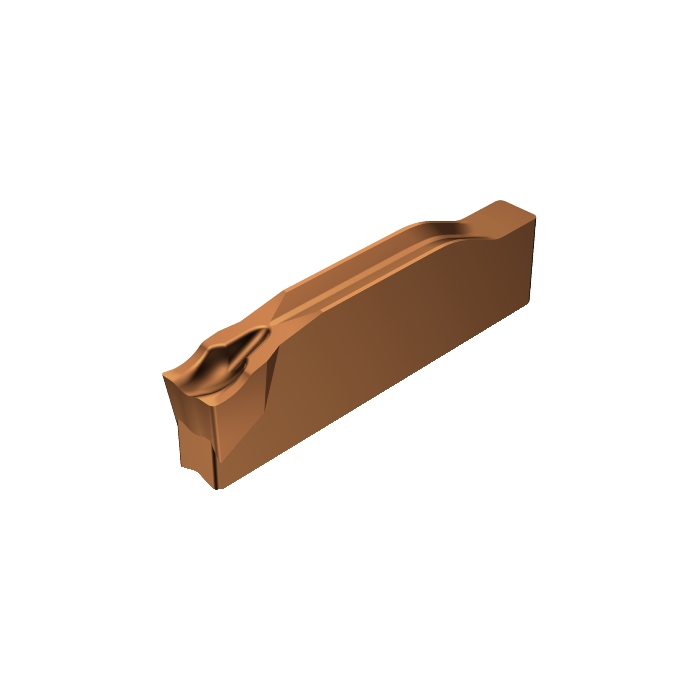

Sandvik Coromant N123G1-0300-0002-CM 2135 CoroCut™ 1-2 insert for parting
Next
Sandvik Coromant N123J1-0500-0004-CR 2135 CoroCut™ 1-2 insert for parting
Previous
![Sandvik Coromant N123G1-0300-0002-CM 2135 CoroCut™ 1-2 insert for parting](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/46862d2f8/sandvik-coromant-n123g1-0300-0002-cm-2135-corocuttm-1-2-insert-for-parting.jpg)
![Sandvik Coromant N123J1-0500-0004-CR 2135 CoroCut™ 1-2 insert for parting](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/468560e5d/sandvik-coromant-n123j1-0500-0004-cr-2135-corocuttm-1-2-insert-for-parting.jpg)
R 336,95
inc. vat
In stock
SKU
5736289
CoroCut® 1-2 insert for parting
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 insert for parting
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 3.2g |
BAMS - Machine Side Body Angle | 0deg |
AN - Clearance Angle Major | 7deg |
Insert Thickness | 4.3321mm |
CW - Cutting Width | 3mm |
CWTOLL - Cutting Width Lower Tolerance | 0mm |
CWTOLU - Cutting Width Upper Tolerance | 0.1mm |
REL - Corner Radius Left | 0.2mm |
RER - Corner Radius Right | 0.2mm |
RETOLL - Corner Radius Lower Tolerance | -0.1mm |
RETOLU - Corner Radius Upper Tolerance | 0.1mm |
LIG - Insert Gauge Length | 19.93mm |
ORDCODE | N123G1-0300-0002-CM 1145 |
CHANGEDATE | 2022-06-23 10:13:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 7 |
SSC - Insert Seat Size Code | G |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CCG1_1 |
Grade | 1145 |
COATING | PVD TiAlN+TiAlN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | CM |
CEDC - Cutting Edge Count | 1 |
