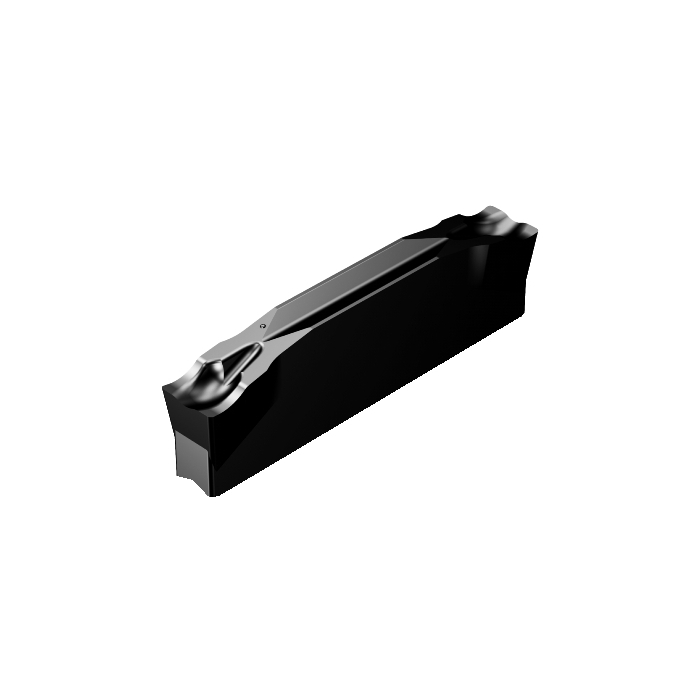

Sandvik Coromant N123G2-0300-0002-CM 3115 CoroCut™ 1-2 insert for parting
R 465,75
inc. vat
In stock
SKU
5736033
CoroCut® 1-2 insert for parting
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 insert for parting
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 3.4g |
| BAMS - Machine Side Body Angle | 0deg |
| AN - Clearance Angle Major | 7deg |
| Insert Thickness | 4.3321mm |
| CW - Cutting Width | 3mm |
| CWTOLL - Cutting Width Lower Tolerance | 0mm |
| CWTOLU - Cutting Width Upper Tolerance | 0.1mm |
| REL - Corner Radius Left | 0.2mm |
| RER - Corner Radius Right | 0.2mm |
| CDX - Cutting Depth Maximum | 18.9mm |
| RETOLL - Corner Radius Lower Tolerance | -0.1mm |
| RETOLU - Corner Radius Upper Tolerance | 0.1mm |
| LIG - Insert Gauge Length | 19.64mm |
| ORDCODE | N123G2-0300-0002-CM 3115 |
| CHANGEDATE | 2022-06-23 10:11:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 7 |
| SSC - Insert Seat Size Code | G |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CCG2_1 |
| Grade | 3115 |
| COATING | CVD TiCN+Al2O3 |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | CM |
| CEDC - Cutting Edge Count | 2 |
