Sandvik Coromant N123G2-0315-0002-GF 1125 CoroCut™ 1-2 insert for grooving

Name: Sandvik Coromant N123G2-0315-0002-GF 1125 CoroCut™ 1-2 insert for grooving
SKU: 5735898
Price: 641.70 ZAR
Availability: InStock

R 641,70 inc. vat

In stock

SKU

5735898

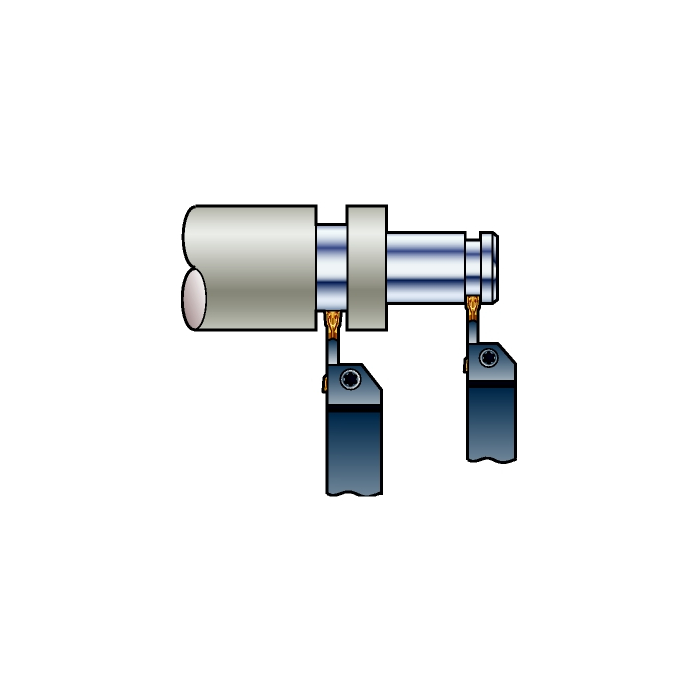

CoroCut® 1-2 insert for grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® 1-2 insert for grooving

More Information
KAP - Kappa (z-axis Rot)	0deg
WT - Weight Of Item	3.7g
RMPX - Maximum Ramping Angle	0deg
BAMS - Machine Side Body Angle	0deg
AN - Clearance Angle Major	7deg
Insert Thickness	4.3321mm
CW - Cutting Width	3.15mm
CWTOLL - Cutting Width Lower Tolerance	0.09mm
CWTOLU - Cutting Width Upper Tolerance	0.13mm
REL - Corner Radius Left	0.2mm
RER - Corner Radius Right	0.2mm
CDX - Cutting Depth Maximum	19.2mm
RETOLL - Corner Radius Lower Tolerance	-0.05mm
RETOLU - Corner Radius Upper Tolerance	0.05mm
LIG - Insert Gauge Length	20.05mm
ORDCODE	N123G2-0315-0002-GF 1125
CHANGEDATE	2022-06-23 10:10:00.000
Hand	N
IFS - Insert Mounting Style Code	7
SSC - Insert Seat Size Code	G
CUTINT_SIZESHAPE - Insert Size And Shape	MCOR_CCG2_1
Grade	1125
COATING	PVD TiAlN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	GF
CEDC - Cutting Edge Count	2
