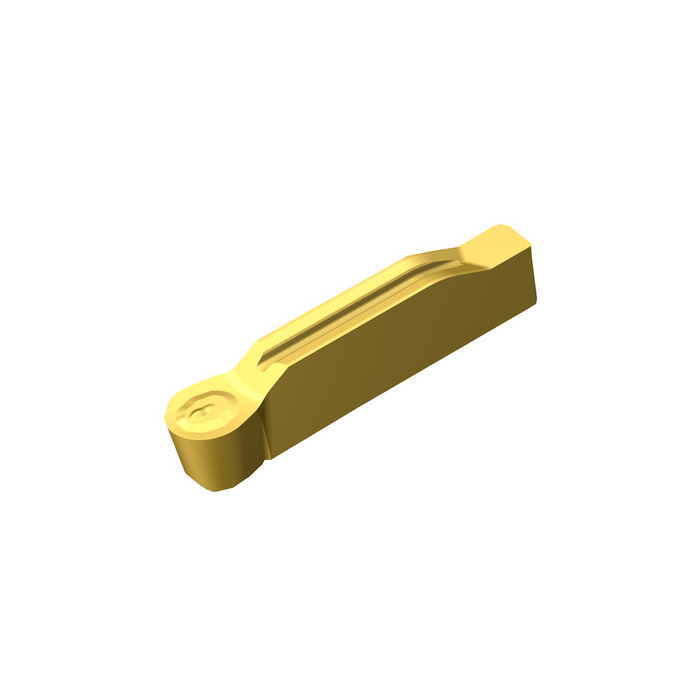

Sandvik Coromant N123H1-0400-RO S05F CoroCut™ 1-2 insert for profiling

Name: Sandvik Coromant N123H1-0400-RO S05F CoroCut™ 1-2 insert for profiling
SKU: 6199511
Price: 468.05 ZAR
Availability: InStock

R 468,05 inc. vat

In stock

SKU

6199511

CoroCut® 1-2 insert for profiling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® 1-2 insert for profiling

More Information
KAP - Kappa (z-axis Rot)	0deg
WT - Weight Of Item	5.8g
KAPR - Tool Cutting Edge Angle	102.5deg
RMPX - Maximum Ramping Angle	90deg
BAMS - Machine Side Body Angle	0deg
AN - Clearance Angle Major	7deg
RE - Corner Radius	2mm
Insert Thickness	4.35mm
CW - Cutting Width	4mm
CWTOLL - Cutting Width Lower Tolerance	-0.02mm
CWTOLU - Cutting Width Upper Tolerance	0.02mm
APMX - Depth Of Cut Maximum	1.8mm
RETOLL - Corner Radius Lower Tolerance	-0.01mm
RETOLU - Corner Radius Upper Tolerance	0.01mm
LIG - Insert Gauge Length	25.05mm
ORDCODE	N123H1-0400-RO S05F
CHANGEDATE	2022-09-22 11:46:00.000
Hand	N
IFS - Insert Mounting Style Code	9
SSC - Insert Seat Size Code	H
CUTINT_SIZESHAPE - Insert Size And Shape	MCOR_CCH1_1
Grade	S05F
COATING	CVD TiCrN+Al2O3+TiN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	RO
CEDC - Cutting Edge Count	1
