Sandvik Coromant N123H2-0400-0004-GF 1125 CoroCut™ 1-2 insert for grooving Previous Sandvik Coromant N123H2-0400-0004-GF 1125 CoroCut™ 1-2 insert for grooving

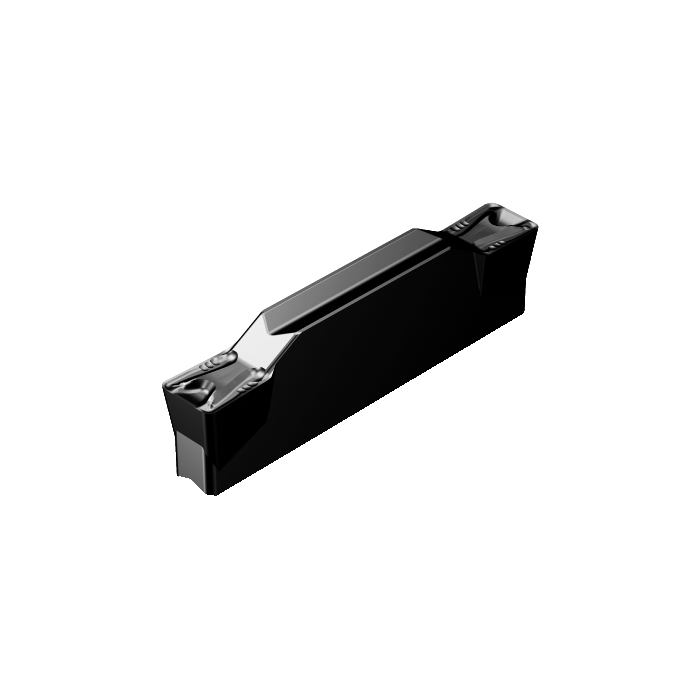

Sandvik Coromant N123H2-0400-0004-TM 3115 CoroCut™ 1-2 insert for turning

R 518,65 inc. vat
Out of stock
SKU
5736550
CoroCut® 1-2 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 0.006kg
KAPR - Tool Cutting Edge Angle 92.5deg
RMPX - Maximum Ramping Angle 0deg
BAMS - Machine Side Body Angle 0deg
AN - Clearance Angle Major 7deg
Insert Thickness 4.35mm
CW - Cutting Width 4mm
CWTOLL - Cutting Width Lower Tolerance 0mm
CWTOLU - Cutting Width Upper Tolerance 0.1mm
REL - Corner Radius Left 0.4mm
RER - Corner Radius Right 0.4mm
CDX - Cutting Depth Maximum 23.4mm
APMX - Depth Of Cut Maximum 2.2mm
RETOLL - Corner Radius Lower Tolerance -0.1mm
RETOLU - Corner Radius Upper Tolerance 0.1mm
LIG - Insert Gauge Length 24.75mm
ORDCODE N123H2-0400-0004-TM 3115
CHANGEDATE 2022-09-07 13:29:00.000
Hand N
IFS - Insert Mounting Style Code 9
SSC - Insert Seat Size Code H
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_CCH2_1
Grade 3115
COATING CVD TiCN+Al2O3
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation TM
CEDC - Cutting Edge Count 2
