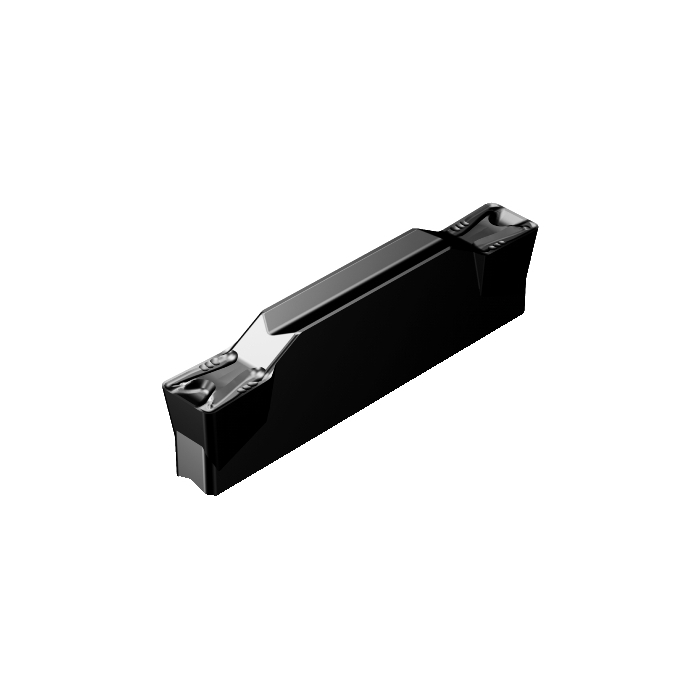

Sandvik Coromant N123H2-0400-0008-TM 3115 CoroCut™ 1-2 insert for turning
R 518,65
inc. vat
In stock
SKU
5736596
CoroCut® 1-2 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 6.1g |
| KAPR - Tool Cutting Edge Angle | 92.5deg |
| RMPX - Maximum Ramping Angle | 0deg |
| BAMS - Machine Side Body Angle | 0deg |
| AN - Clearance Angle Major | 7deg |
| Insert Thickness | 4.35mm |
| CW - Cutting Width | 4mm |
| CWTOLL - Cutting Width Lower Tolerance | 0mm |
| CWTOLU - Cutting Width Upper Tolerance | 0.1mm |
| REL - Corner Radius Left | 0.8mm |
| RER - Corner Radius Right | 0.8mm |
| CDX - Cutting Depth Maximum | 23.4mm |
| APMX - Depth Of Cut Maximum | 2.2mm |
| RETOLL - Corner Radius Lower Tolerance | -0.1mm |
| RETOLU - Corner Radius Upper Tolerance | 0.1mm |
| LIG - Insert Gauge Length | 24.7mm |
| ORDCODE | N123H2-0400-0008-TM 3115 |
| CHANGEDATE | 2022-09-07 12:14:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 9 |
| SSC - Insert Seat Size Code | H |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CCH2_1 |
| Grade | 3115 |
| COATING | CVD TiCN+Al2O3 |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | TM |
| CEDC - Cutting Edge Count | 2 |
