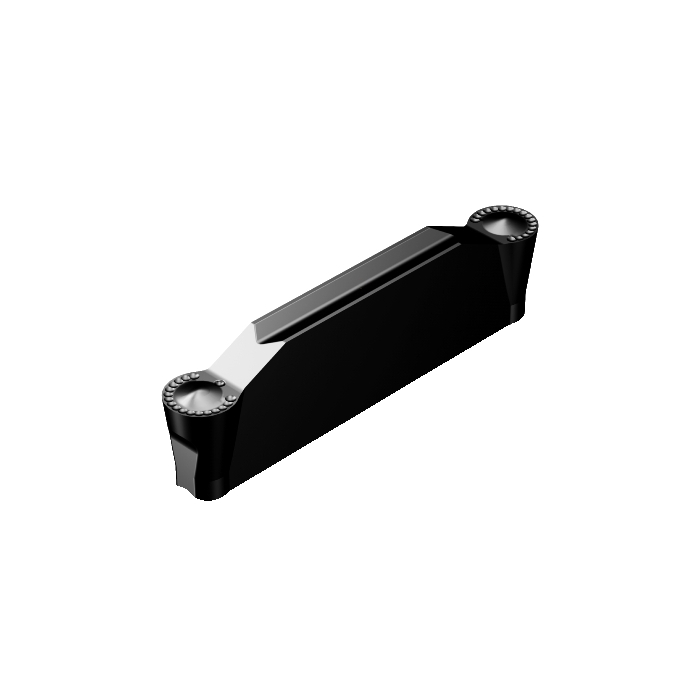

Sandvik Coromant N123H2-0475-RM 1125 CoroCut™ 1-2 insert for profiling
Previous


R 518,65
inc. vat
In stock
SKU
5736055
CoroCut® 1-2 insert for profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 insert for profiling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 0.006kg |
RMPX - Maximum Ramping Angle | 90deg |
BAMS - Machine Side Body Angle | 0deg |
AN - Clearance Angle Major | 7deg |
RE - Corner Radius | 2.375mm |
Insert Thickness | 4.35mm |
CW - Cutting Width | 4.75mm |
CWTOLL - Cutting Width Lower Tolerance | -0.05mm |
CWTOLU - Cutting Width Upper Tolerance | 0.05mm |
CDX - Cutting Depth Maximum | 22.9mm |
APMX - Depth Of Cut Maximum | 2.2mm |
RETOLL - Corner Radius Lower Tolerance | -0.1mm |
RETOLU - Corner Radius Upper Tolerance | 0.1mm |
LIG - Insert Gauge Length | 25.18mm |
ORDCODE | N123H2-0475-RM 3115 |
CHANGEDATE | 2022-09-07 12:06:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 9 |
SSC - Insert Seat Size Code | H |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CCH2_1 |
Grade | 3115 |
COATING | CVD TiCN+Al2O3 |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | RM |
CEDC - Cutting Edge Count | 2 |
