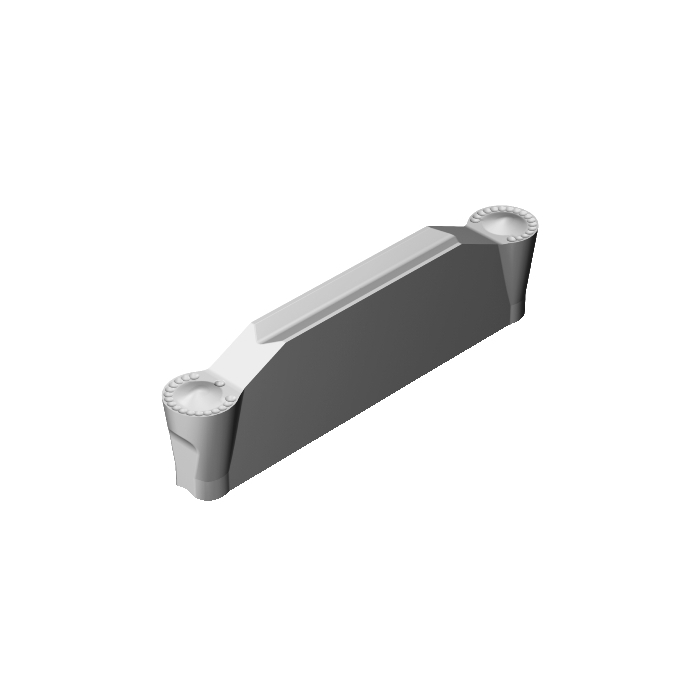

Sandvik Coromant N123J2-0600-RM H13A CoroCut™ 1-2 insert for profiling
R 438,15
inc. vat
In stock
SKU
5736328
CoroCut® 1-2 insert for profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 insert for profiling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 8g |
| RMPX - Maximum Ramping Angle | 90deg |
| BAMS - Machine Side Body Angle | 0deg |
| AN - Clearance Angle Major | 7deg |
| RE - Corner Radius | 3mm |
| Insert Thickness | 4.35mm |
| CW - Cutting Width | 6mm |
| CWTOLL - Cutting Width Lower Tolerance | 0mm |
| CWTOLU - Cutting Width Upper Tolerance | 0.1mm |
| CDX - Cutting Depth Maximum | 22.2mm |
| APMX - Depth Of Cut Maximum | 2.8mm |
| RETOLL - Corner Radius Lower Tolerance | -0.1mm |
| RETOLU - Corner Radius Upper Tolerance | 0.1mm |
| LIG - Insert Gauge Length | 25.09mm |
| ORDCODE | N123J2-0600-RM H13A |
| CHANGEDATE | 2022-09-07 13:12:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 9 |
| SSC - Insert Seat Size Code | J |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_CCJ2_1 |
| Grade | H13A |
| SUBSTRATE | HW |
| CBMD - Chip Breaker Manufacturer's Designation | RM |
| CEDC - Cutting Edge Count | 2 |
