Sandvik Coromant N123K55-25A2 CoroCut™ 1-2 blade for parting
Next
Sandvik Coromant N123D15-25A2 CoroCut™ 1-2 blade for parting
Previous
![Sandvik Coromant N123K55-25A2 CoroCut™ 1-2 blade for parting](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/471738201/sandvik-coromant-n123k55-25a2-corocuttm-1-2-blade-for-parting.jpg)
![Sandvik Coromant N123D15-25A2 CoroCut™ 1-2 blade for parting](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/46949de3e/sandvik-coromant-n123d15-25a2-corocuttm-1-2-blade-for-parting.jpg)
R 2 142,45
inc. vat
In stock
SKU
5736676

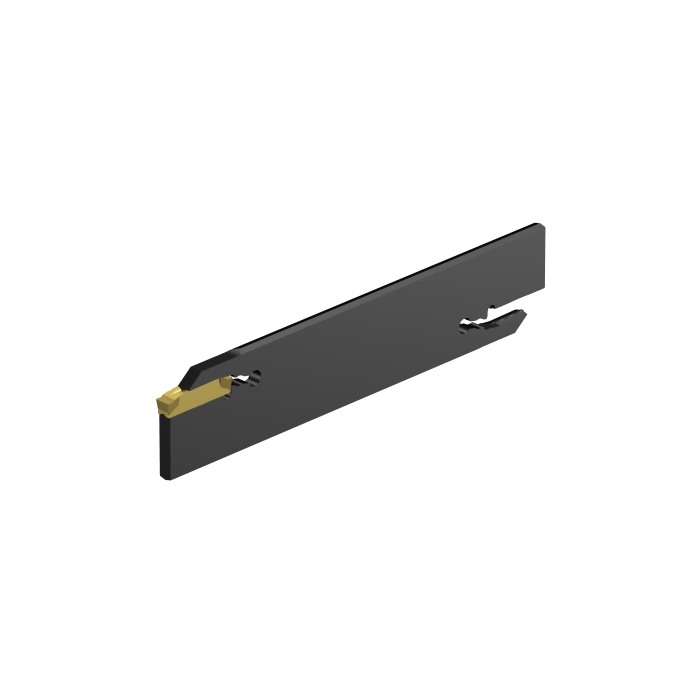

CoroCut® 1-2 blade for parting
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 blade for parting
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
LF - Functional Length | 150mm |
WT - Weight Of Item | 0.143kg |
OAL - Overall Length | 150mm |
OHX - Maximum Overhang | 55mm |
KAPR - Tool Cutting Edge Angle | 90deg |
BAWS - Workpiece Side Body Angle | 0deg |
WF - Functional Width | 4.75mm |
HF - Functional Height | 25mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
Insert Thickness | 4.35mm |
H - Shank Height | 31.9mm |
CW - Cutting Width | 5mm |
CDX - Cutting Depth Maximum | 55mm |
ORDCODE | N123J55-25A2 |
ADINTMS - Adaptive Interface Machine Direction | M_PMC012_C0250_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-13 15:07:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCJ2_4 |
Hand | N |
MIID - Master Insert Identification | N123J2-0500-0002-CM |
SSC - Insert Seat Size Code | J |
CICT - Cutting Item Count | 1 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
